Queensgate QI DPT-C-L Digital Piezo Translator & Control Module CM-LN-LD (3681)

Queensgate QI DPT-C-L Digital Piezo Translator & Control Module CM-LN-LD (3681)

$1,500 (USD)

Goleta, CA

orCall (805)-680-7222

Description

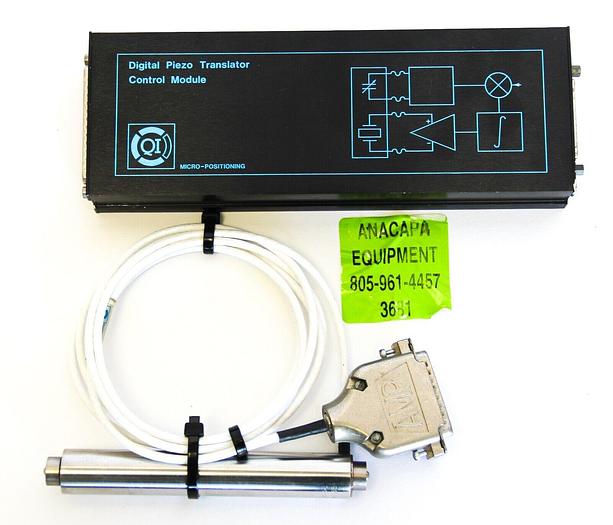

Queensgate QI DPT-C-L Digital Piezo Translator & Control Module CM-LN-LD (3681)w In good cosmetic condition. Taken from a working environment. Unable to test. See pictures for more detail. Manufacturer: Queensgate Instruments Model #: CM-LN-LD (MAS) | DPT-C-L The following is taken from manufacturer's website: The Digital Piezo Translator (DPT) is a piezoelectric translation device capable of moving up to 15m with very high linearity and essentially perfect repeatability. The hysteresis is less than a nanometer. Ordinary piezoelectric translators are non-linear and exhibit hysteresis and creep. To overcome these deficiencies a position sensor is built into each DPT. The output of this sensor controls the voltage on the piezo stack removing the hysteresis, non-linearity and creep. Each DPT is supplied with a calibration curve which can serve as a basis to correct the very small residual non-linearity. The position sensing circuitry and piezo drive amplifier have been miniaturized and packaged in the stand-alone CM Control Module, which requires only 15 V to operate. This makes the DPT particularly suitable for OEM applications. The Control Module comes complete with analog input, 14 bit parallel digital interface, status lines and ready signal. To operate the DPT, the minimum required is a Control Module. For laboratory applications, up to three CM can be mounted in an AX301 host unit, which provides position display, optional IEEE488, RS232 and parallel interfaces, and allows manual control of the DPT. Applications: NSOM Precision Engineering Scanning Probe Microscopy Hard Disk Head Testing Includes: Digital Piezo Translator Control Module | CM-LN-LD (MAS) Digital Piezo Translator | DPT-C-L Digital Piezo Translator DPT-C-L Specifications Range (m): 70 Length (mm): 127.8 Diameter (mm): 20 Mass (gms): 170 Linearity(%): 0.15 Temp Coeff (nm C-1): 35 * Tilt (arsecs m-1): 0.5 * * Typical Specification For Information And Guidance (Not Guaranteedin normal production) Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost.We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerQueensgate Instruments
ModelDPT-C-L / CM-LN-LD
ConditionUsed
Model #CM-LN-LD (MAS) | DPT-C-L
Range (m)70
Length (mm)127.8
Diameter (mm)20
Mass (gms)170
Linearity(%)0.15
Temp Coeff (nm C-1)35
Tilt (arsecs m-1)0.5
