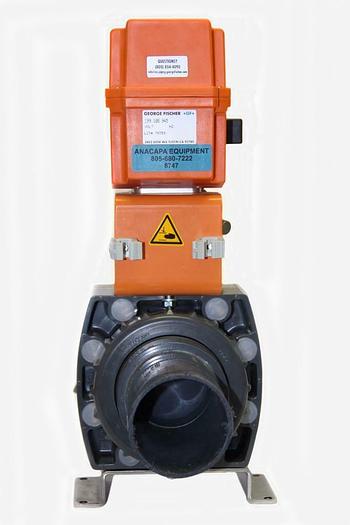

George Fischer +GF+ Type 370 d90DN80 3", 199.108.945 Actuator, DN80 (8747)W
No longer available
George Fischer +GF+ Type 370 d90DN80 3", 199.108.945 Actuator, DN80 (8747)W
$325 (USD)
Goleta, CA
Description
George Fischer +GF+ Type 370 d90DN80 3", 199.108.945 Actuator, DN80 (8747)W
Good cosmetic condition with some signs of use. Taken from a working environment. Flanges are in good shape. See pictures for more detail.
Manufacturer: George Fischer +GF+
Model #/ Model: 199.108.945, 198.150.710, Typ 370 d90DN80 3"
Included:
George Fischer +GF+
199.108.945, 198.150.710
George Fischer +GF+ Typ 370 d90DN80 3" PVC-U EPDM PN10
Two DN80 Flanges with PVC Piping
Specifications:
Note*
this data was taken from an online source and may not pertain to this particular model.
Typ 370 d90DN80
Style: Wafer
Body Material: PVC
Max. Water Pressure: 150 psi
Pipe Size: 3"
Temp. Range: 0 to 140 Degrees F
Liner Material: PVC
Disc Material: PVC
Handle Type: Lever
Bolt Circle Dia.: 6-19/64"
Standards: ISO
Code 198.150.710
24V AC/DC
75-90 DN 65-80
Type EA 30 Code 198.150.710
Nominal voltage: 115/230 V, 50-60 Hz
Power consumption: 12 W
Protection consumption: 12 W
Protection: IP 65 in accordance with DIN 40050
Duty Cycle: 100% at 25 C / 70% at 50 C, 20 min
Overload protection: Dependent on current and time (Automatic reset)
Electric connection: Cable plug 3 P+E in accordance with DIN 43650
Control Time: 12 s / 90 <)
Angle of operation: max, 270, set to 90
Continuous torque: 25 Nm
Peak torque: 50 Nm
Operating temperature: -10 to + 50 C
Permissible humidity: 0-98% non-condensing
Body Material: PP fiberglass reinforced external screws rust-proof
Position indicator: visual, integrated
Two DN80
Weight: 25 Lb
Dimensions: LxWxH": 17x9x20"
Sold as is with 30 day Right of Return, only pictured items included
Easy return/refund for any reason
Anacapa Equipment
RETURNS
Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID.
SHIPPING
All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost.
We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID.
LIMITED WARRANTY
Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased.
The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty
.
INDEMNITY
Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.
Specifications
Manufacturer | George Fischer +GF+ |
Model | 199.108.945, 198.150.710, Typ 370 d90DN80 3" |
Condition | Used |
Model #/ Model | 199.108.945, 198.150.710, Typ 370 d90DN80 3" |
Style | Wafer |
Body Material | PP fiberglass reinforced external screws rust-proof |
Max. Water Pressure | 150 psi |
Pipe Size | 3" |
Temp. Range | 0 to 140 Degrees F |
Liner Material | PVC |
Disc Material | PVC |
Handle Type | Lever |
Bolt Circle Dia. | 6-19/64" |
Standards | ISO |
Nominal voltage | 115/230 V, 50-60 Hz |
Power consumption | 12 W |
Protection consumption | 12 W |
Protection | IP 65 in accordance with DIN 40050 |
Duty Cycle | 100% at 25 C / 70% at 50 C, 20 min |
Overload protection | Dependent on current and time (Automatic reset) |
Electric connection | Cable plug 3 P+E in accordance with DIN 43650 |
Control Time | 12 s / 90 <) |
Angle of operation | max, 270, set to 90 |
Continuous torque | 25 Nm |
Peak torque | 50 Nm |
Operating temperature | -10 to + 50 C |
Permissible humidity | 0-98% non-condensing |
Position indicator | visual, integrated |
Weight | 25 Lb |
