Varian Vestec LR88590 Multi-Gauge Controller Vacuum Gauge w/ Cable USED (7382)R
No longer available
Varian Vestec LR88590 Multi-Gauge Controller Vacuum Gauge w/ Cable USED (7382)R
$600 (USD)
Goleta, CA
Description
Varian Vestec LR88590 Multi-Gauge Controller Vacuum Gauge USED (7382)R
In good cosmetic condition. Powers on, buttons respond well to input. Digital read out is clear. Unable to test further. See pictures for more detail.
Shows E03 because there is no Sensor connected.
Manufacturer: Varian Vestec
Model #/ Model: LR88590
Includes:

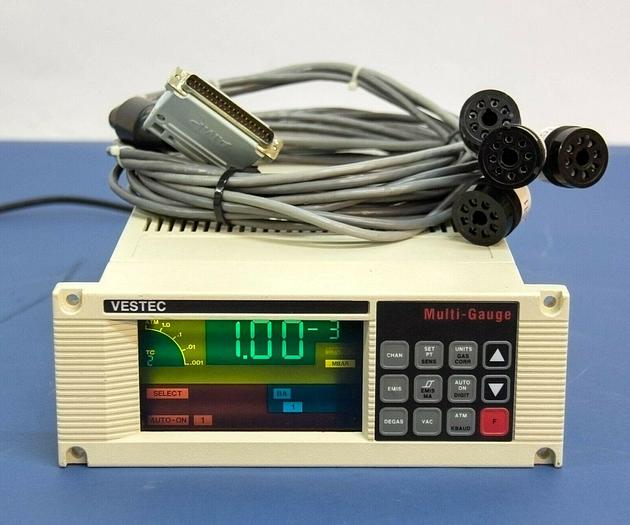

LR88590 Multi-Gauge Controller
Varian L6430-001 Thermocouple Board Cable (4 Ports)
Bayard-Alpert Board
Thermocouple Board
Set Point Board
RS232 Board
Power Requirements:
115VAC
5Amps
50/60 Hz
Specifications: (These specifications were taken from an online user manual and may not be accurate to this product.)
Bayard-Alpert Board
Electrometer Accuracy:
>1010 Torr 5% of ion current reading (ion current = > 10 pA)
<1010 Torr 20% of ion current reading (ion current = <10 pA, I > 4 pA)
Emission Current Range: 4.00 mA is the default, currents can be set from 10 A to 9.99 mA through the front panel keypad of the unit. The emission current remains constant as long as the pressure is <1 x 105 Torr or the emission current is set to 1.00 mA. The Multi-Gauge automatically reduces the current by a factor of 10 when the pressure is >5 x 105 Torr and the emission current is set to 1.01 mA.
Alternate Filament Selection
Automatic for a dual filament gauge.
The EMIS 2 indicator illuminates to indicate that the second filament is active.
Overpressure Protection: Automatic gauge tube turnoff when pressure:
1 x 103 Torr for standard Bayard/Alpert tubes (563, 571, and 572)
1 x 101 Torr for broad range Bayard/Alpert tubes (564 and 580)
Thermocouple Board
Pressure range: 2 Torr to 1 x 103 Torr
Thermocouple heater current: 165 mA 10%
Thermocouple Resistance Approximately 1.4 Ohms from pin to pin
Cable length: Standard lengths of 10, 25, 50, 75, and 100 feet are available from stock. Connections are made to the rear of the card.
Recorder output: 0 to 10 V non-linear. See Figure C-1 for connections of user-supplied wiring.
Vacuum Technologies recommends the use of shielded wiring to maintain
compliance with FCC regulations for radiated emissions. The recorder output does not reflect ATM or VAC settings.
Fault Detections: No cable or open Thermocouple circuit; Thermocouple power supply fault.
Dimensions
Actual Dimensions: 10x16x4"
Actual Weight: 5 lbs
Sold as is with 30day Right of Return, only pictured items included
Easy return/refund for any reason
Anacapa Equipment
RETURNS
Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID.
SHIPPING
All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost.
We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID.
LIMITED WARRANTY
Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased.
The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty
.
INDEMNITY
Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.
Specifications
Manufacturer | Varian Vestec |
Model | LR88590 L6430-001 |
Condition | Used |
Model #/ Model | LR88590 |
Specifications | (These specifications were taken from an online user manual and may not be accurate to this product.) |
Emission Current Range | 4.00 mA is the default, currents can be set from 10 A to 9.99 mA through the front panel keypad of the unit. The emission current remains constant as long as the pressure is <1 x 105 Torr or the emission current is set to 1.00 mA. The Multi-Gauge automatically reduces the current by a factor of 10 when the pressure is >5 x 105 Torr and the emission current is set to 1.01 mA. |
Pressure range | 2 Torr to 1 x 103 Torr |
Thermocouple heater current | 165 mA 10% |
Cable length | Standard lengths of 10, 25, 50, 75, and 100 feet are available from stock. Connections are made to the rear of the card. |
Recorder output | 0 to 10 V non-linear. See Figure C-1 for connections of user-supplied wiring. |
Fault Detections | No cable or open Thermocouple circuit; Thermocouple power supply fault. |
Actual Dimensions | 10x16x4" |
Actual Weight | 5 lbs |
