SMC LESH8LK-75-S31P3, Electric Actuator Slider, LECP1P3-LESH8LK-75 Motor (6736)W

SMC LESH8LK-75-S31P3, Electric Actuator Slider, LECP1P3-LESH8LK-75 Motor (6736)W

$520 (USD)

Goleta, CA

orCall (805)-680-7222

Description

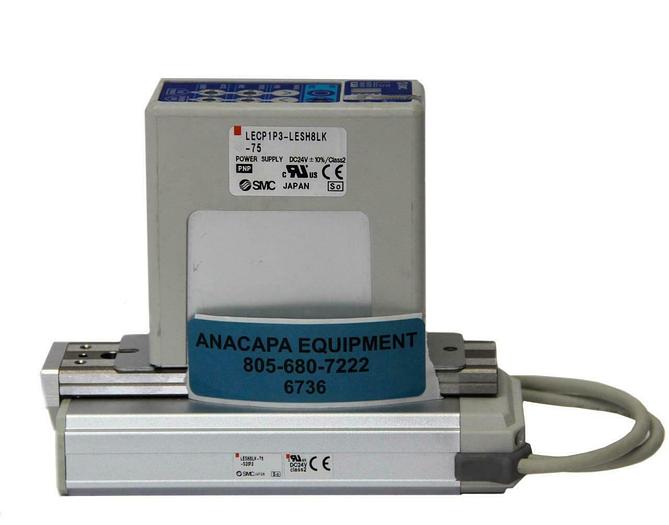

SMC LESH8LK-75-S31P3, Electric Actuator Slider, DC24V (6736)W Item is in excellent cosmetic condition with minimal signs of use. Unable to test. Cable is clean and intact. See pictures for more details. Manufacturer: SMC Model #/ Model: LESH8LK-75-S31P3 Electric Actuator Included: LESH8LK-75-S31P3 Electric Actuator SMC LECP1P3-LESH8LK-75, LE Motor Driver P1 Cords NOT included Specifications: Note* this data was taken from an online source and may not pertain to this particular model. LESH8LK-75-S31P3 Electric Actuator Actuator Cable: S (Standard Cable) Body Option: Basic Body Size: 8 Motor: Step Motor (Servo DC24V) Mounting: w/o Side Holder Stroke: 75mm Positioning repeatability: +/- 0.05 mm Max. Pushing Force: 180 N Max. Acceleration/Deceleration: 5,000 mm/s Max. Speed: 400 mm/s LECP1P3-LESH8LK-75 Compatible Motor: Step motor (Servo/24VDC) Power Supply: 24VDC +/-10% Parallel Input: 6 Inputs Parallel Output: 6 Outputs Stop Points: 14 Points Compatible Encoder: Incremental A/B phase (800 pulse/rotation) Serial Communication: RS485 (Modbus protocol compliant) Memory: EEPROM LED Indicator: LED (Green/Red) one of each 7-Segment LED Display: 1 digit, 7-segment display (red) Figures are expressed in hexadecimal ("10" to "15" in decimal number are expressed as "A" to "F" Lock Control: Forced-lock release terminal Cooling System: Natural air cooling Operating Temperature Rang: 32 to 104F (0 to 40C) (No Freezing) Operating Humidity Range (%RH): 90 or less ( No condensation) Storage Temperature Range: 14 to 140F (-10 to 60C) (No freezing) Storage Humidity Range (%RH): 90 or less (No condensation) Insulation Resistance (M ): Between the housing (radiation fin) and SG terminal 50 (500 VDC) Cable Length: 1.5 (L) (m) Weight: 1.5 Lb Dimensions: LxWxH": 8x4x3" Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerSMC
ModelLESH8LK-75-S31P3
ConditionUsed
Actuator CableS (Standard Cable)
Body OptionBasic
Body Size8
MotorStep Motor (Servo DC24V)
Mountingw/o Side Holder
Stroke75mm
Positioning repeatability+/- 0.05 mm
Max. Pushing Force180 N
Max. Acceleration/Deceleration5,000 mm/s
Max. Speed400 mm/s
Compatible MotorStep motor (Servo/24VDC)
Power Supply24VDC +/-10%
Parallel Input6 Inputs
Parallel Output6 Outputs
Stop Points14 Points
Compatible EncoderIncremental A/B phase (800 pulse/rotation)
Serial CommunicationRS485 (Modbus protocol compliant)
MemoryEEPROM
LED IndicatorLED (Green/Red) one of each
7-Segment LED Display1 digit, 7-segment display (red) Figures are expressed in hexadecimal ("10" to "15" in decimal number are expressed as "A" to "F"
Lock ControlForced-lock release terminal
Cooling SystemNatural air cooling
Operating Temperature Rang32 to 104F (0 to 40C) (No Freezing)
Operating Humidity Range (%RH)90 or less ( No condensation)
Storage Temperature Range14 to 140F (-10 to 60C) (No freezing)
Storage Humidity Range (%RH)90 or less (No condensation)
Cable Length1.5 (L) (m)
Weight1.5 Lb
