PI E-861.1A1 Nexact Controller, PI N-310.01 Precision Linear Positioner (6716)W
Items are in good cosmetic condition with some signs or use. Unable to test. See pictures for more details.
Manufacturer: PI
Model #/ Model:
E-861 PiezoWalk Nexact Controller/Driver |
PI N-310.01 Nexact Precision Linear Positioner
Includes:

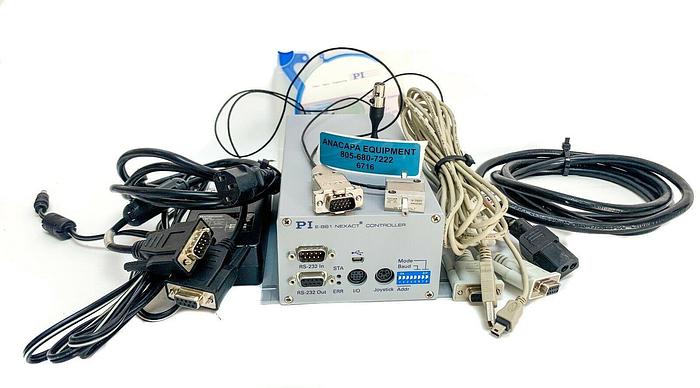

E-861 PiezoWalk Nexact Controller/Driver
PI N-310.01 Nexact Precision Linear Positioner
Software Disc for E-861
Power Supply
RS 232 Cable with adapter
Micro USB to USB Cable
Fields of Application
2-photon microscopy, confocal microscopy
3-D Imaging
Laser technology
Interferometry
Biotechnology
Micro manipulation
Auto focus with high demands on travel range
Included:
E-861.1A1 Piezo Walk Nexact Controller
Other things
Specifications:
Note*
Thisdata wastaken from an online source and may notpertain to this
particular item.
E-861.1A1 Piezo Walk Nexact Controller
Function: Controller for NEXACT drives, suitable for piezoWalk drives
Drive type: NEXACT piezo motor
Axes: 1
Supported functions: Start up macro. Data recorder for recording operating data such as motor voltage, velocity, position or position error. Internal safety circuitry: Watchdog timer.
Motion and Control
Controller type: PID controller, parameter changing during operation
Trajectory profiles: Trapezoidal
Encoder input: Analog encoder input sine-cosine, interpolation selectable to 1000; Interpolation electronics for differential transmission, 1 Vpp and 2.5 V offset of the encoder signal
Stall detection: Automatic motor stop when a programmable position error is exceeded
Input limit switch: 2 x TTL (pull-up/pull-down, programmable)
Input reference point switch: 1 x TTL
Electrical properties:
Max. output power: 40W
Output voltage: -10 to +45V
Max. current consumption: 2A
Interfaces and operation:
Communication interfaces: USB, RS-232
Motor connection: HD Sub-D 15 (f)
Sensor connection: HD Sub-D (m)
Controller network: Up to 16 units on single interface
I/O lines: 4 analog/digital in, 4 digital out (TTL)
Command set: PI General Command Set (GCS)
User software: PIMikroMove
Application programming interfaces: API for C / C++ / C# /VB.NET / Python, drivers for Lab-VIEW
Operating voltage: 24 V; in the scope of delivery: External power adapter with 24 V, 2A
Operating temperature range: 0 to 50C
N-310.01 Nexact OEM Miniature Linear Motor / Actuator
Active axes: X
Step Size (In Step Mode): 5 nm to 10m
Travel range in analog mode: +/- M Max
Travel Range: 10 to 125 mm, variable runner lengths
Resolution, open loop: 0.03 nm
Velocity: 10 mm/s
Push/pull force (active): 10 N Max
Holding force (passive): 12 N
Operating Voltage: -10 to +45 V
Operating temperature range: 0 to 50C
Housing material: Stainless steel
Weight: 6 Lb
Dimensions: LxWxH": 12x10x8"
