Granville Phillips 358 Micro-Ion Controller & 355001-YF Mirco-Ion Gauge (6714)W

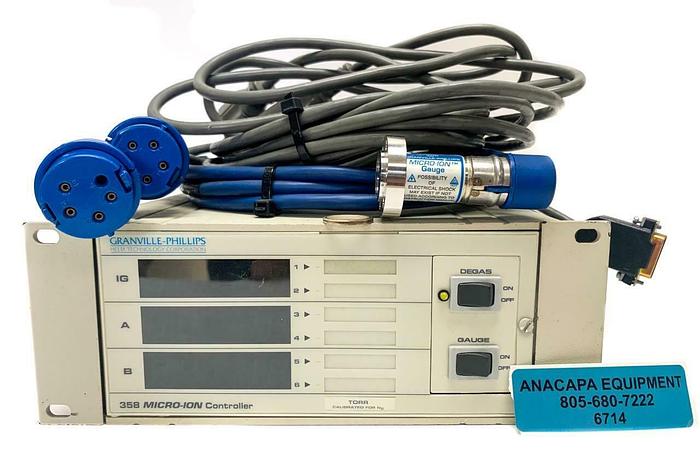

Item is in faircosmetic condition with some signs of use. Powers on, degas and gauge switches both respond well to inputs. Screen lights up and responds to inputs. Micro Ion Gauge cord has electrical tape the wires because outer insulation was cut. Unable to test any further. See pictures for more details.
Manufacturer: Granville Phillips
Model #/ Model: 358 Micro-Ion Controller, 355001- YF Micro Ion Gauge
Description:
The Series 358 Micro-Ion Vacuum Measurement System can operate one Micro-Ion Gauge along with two Convectron Gauges simultaneously, or one Micro-Ion Gauge along with one Convectron Gauge and one Capacitance Manometer Gauge simultaneously.
(Taken from manufacturer website)
Includes:
Granville Phillips 358 Micro-Ion Controller
Catalog #: 358501-010-TL
Date Code: APR 04
Granville Phillips 355001-YF Micro Ion Gauge
Power Cord
Convection Gauge Cord
Specifications:
Controller
Electronic accuracy: Typical +/- 3% of reading at ambient temperature of 25 +/- 5 C
Display: Digital, green LED, 2 digits plus exponent
Units: Torr, mbar, pascal (user selectable)
Update Rate: 0.5 sec. typical as shipped. Internal switch selectable to 3 sec./reading averaged
Filament Control: Switch selectable: filament 1, filament 2, or both
Degas: Electron bombardment, approximately 4 W with 2 minute timer
Remote I/O: Momentary ground controls filament selection and degas
Gauge and Degas On/Off inputs: Less than 0.4 Vdc @ 10A for 25 msec (minimum). Must be greater than 3.5 Vdc for 105 msec (minimum) before next low state
Filament Status Relay Contact Rating: Micro-Ion gauge status relay rated at 1.0A, 30 Vdc
Environment:
Indoor Use
Altitude up to 2000 meters
Temperature 0C to 40 C
Maximum relative humidity 80% for temperatures up to 31 C decreasing linearly to 50% relative humidity at 40 C
Analog Output: 0 to 10 Vdc, logarithmic, 1 V/decade
Overpressure Protection: Gauge turns OFF if pressures rises above factory set upper pressure limit
Emissions Current Settings: 0.02 mA (MV), 1 mA (HV), 4 mA (UHV)
Operating Voltage and Power: 100 to 240 VAC, 50 to 60 Hz, 50 W maximum
Fuse Rating: 250 V, 1.6A, 5 x 20mm Time Lag (T), low breaking capacity
Controller Options:
Process Control
Relay Configuration: SPDT, Form C
Contact Rating: 5A @ 120 VAC, 4A @ 240 VAC resistive or 5A @ 30 Vdc
Channels: 6 maximum, 2 per operating gauge maximum
Hysteresis: 10%
Set point adjustment: Digital, 2 significant digits plus exponent
Digital Interfaces: RS-232 or RS-485/422
Dual Convection Gauge:
Pressure Range:
999to1x10
4
TorrforN
2
or air
Display Units: Torr, mbar, pascal (user selectable)
Maximum Cable Length: 150 m (500 ft)
Analog Output: 0 to 7 V, logarithmic, 1 V/decade, adjustable offset of + 1 to -7 Vdc
Display Resolution: 2 significant digits, except for lowest two decades
Micro-Ion Gauge
Sensitivity:
3/Torr to 50/ Torr (factory setting is 20/Torr)
Emission Current:
20
A, 1 mA, 4 mA
Collector Potential: 0V
Grid Potential: + 180 Vdc
Filament Potential: + 30 Vdc
Degas: Electron bombardment: 15 mA DC, 250 Vdc, auto shutoff, 2 minutes
Analog Output: 0 to 10 Vdc, logarithmic, 1 V/decade
Filaments: Dual yttria-coated iridium
Operating Temperature: 0 C to +50 C ambient, non-condensing
Gauge Bake-out Temperature: +200 C maximum
Cable Bake-out Temperature: +150 C maximum
Materials Exposed to Vacuum: Vacuum fired, UHV compatible
Internal Volume: 10.8 cm
3
(0.66 in.
3
)
Weight: 8 Lb
Dimensions: LxWxH": 9.5x11x6"
Sold as is with 30 day Right of Return, only pictured items included
Easy return/refund for any reason
