Galil Motion Control DMC-1840 Rev C 4-Axis Daughter Board, Adept DMC Buffer 6631

No longer available

Galil Motion Control DMC-1840 Rev C 4-Axis Daughter Board, Adept DMC Buffer 6631

$520 (USD)

Goleta, CA

Description

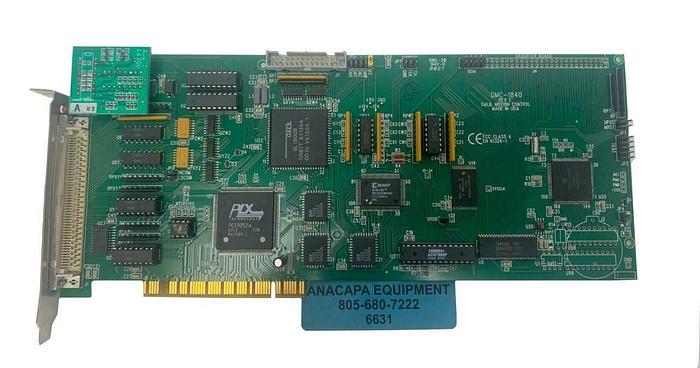

Galil Motion Control DMC-1840 Rev C, 4-Axis DaughterBoard w/Adept DMC Buffer (6631)W Item is in good cosmetic condition with some signs of use. Unable to test. See pictures for more details. Manufacturer: Galil Motion Control Model #/ Model: DMC- 1840 Rev C Description: The DMC-18x0 PCI motion controller is a member of the Optima Series, Galil's prior-generation, multi-axis motion controllers. The DMC-18x0 controller accommodates 1- through 8-axis formats and allows control of step or servo motors on any combination of axes. Any mode of motion can be programmed including linear and circular interpolation, contouring, electronic gearing and ecam. Like all Galil controllers, programming the DMC-18x0 is simplified with two-letter, intuitive commands and a full set of software tools such as WSDK for servo tuning and analysis. (Taken from manufacturer website) Includes: DMC-1840 RevC Adept DMC Buffer 20005-00001A Specifications: Note* This data was taken from an online source and may not pertain to this particular model. System Processor Motorola 32-bit microcomputer Communications interface DMC-18x0: PCI with bi-directional FIFO plus auxiliary FIFO, and DPRAM Commands are sent in ASCII. A binary Communication mode is also available as as standard feature Modes of Motion Point-to-point positioning Position tracking Jogging 2D Linear and Circular Interpolation with federate override Linear interpolation for up to 8 axes Tangential Following Helical Electronic Gearing with multiple masters Gantry Mode Electronic Cam Contouring Teach and playback Memory Program memory size--1000 lines x 80 characters 254 variables 8000 array elements in up to 30 arrays Filter PID (proportional-integral-derivative) with velocity and acceleration feed forward Notchfilterandlow-pass filter Dual-loop control for backlash compensation Velocity smoothing to minimize jerk Integration limits Torque Limits Offset Adjustments Option for piezo-ceramic motors Kinematic Ranges Position: 32 Bit (+/-2.15 billion counts per move; automatic rollover; no limit in jog or vector modes) Velocity: up to 12 million counts/sec for servo motors Acceleration: up to 12 million counts/sec for servo motors Acceleration: Up to 67 million counts/sec Uncommitted Digital I/O Digital Inputs: 24 Digital Outputs: 16 Configurable I/O 64 w/ DB-14064 Dedicated Inputs (per axis) Analog motor command output with 16-bit DAC Resolution Pulse and direction output for step motors PWM output for step motors PWM output for servo amplifiers Amplifier enable output Error output (per card) High-speed position compare output (per card) Maximum Encoder Feedback Rate: 12 MHz Maximum Stepper Rate: 3 MHz (Full, half or micro step) Power Requirements +5V 750 mA -12V 40 mA +12V 40 mA Environmental Operating Temperature: 0-70C Humidity: 20-95%RH, non-condensing Weight: 1 Lb Dimensions: LxWxH": 12x5x1" Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerGalil Motion Control
ModelDMC-1840 Rev C
ConditionUsed
Model #/ ModelDMC- 1840 Rev C
DMC-18x0PCI with bi-directional FIFO plus auxiliary FIFO, and DPRAM
Position32 Bit (+/-2.15 billion counts per move; automatic rollover; no limit in jog or vector modes)
Velocityup to 12 million counts/sec for servo motors
AccelerationUp to 67 million counts/sec
Digital Inputs24
Digital Outputs16
​DMC-18x0PCI with bi-directional FIFO plus auxiliary FIFO, and DPRAM
Maximum Encoder Feedback Rate12 MHz
Maximum Stepper Rate3 MHz (Full, half or micro step)
Operating Temperature0-70C
Humidity20-95%RH, non-condensing
Weight1 Lb
