MDC IV-200M-PAA-03 323022-03 ElectroPneumatic Inline Valve 2" (6122)
No longer available
MDC IV-200M-PAA-03 323022-03 ElectroPneumatic Inline Valve 2" (6122)
$600 (USD)
Goleta, CA
Description

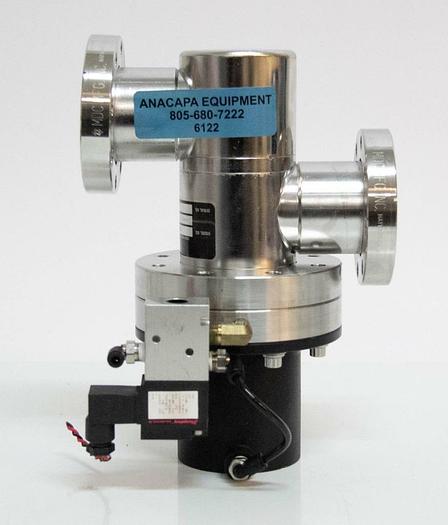

MDC IV-200M-PAA-03 323022-03 Pneumatic Inline Valve 2" Electropneumatic 6122 R
In greatcosmetic condition. Very minor scuff marks.See pictures for more detail.
Manufacturer: MDC Vacuum Products
Model #: IV-200M-PAA-03
Model: Pneumatic Inline Valve
?
Air Control Solenoid Valve323022-0
2" Port
Poppet elastomer seals made of Viton
Stainless Steel Construction
Electropneumatic operation
Air-open / spring-close air cylinder
Specifications
Material
Flanges
304ss
Valve Body
304ss
Air Cylinder
Teflon coated Aluminium
Actuator Seal
AM-350 welded bellows
Gaskets, pneumatic actuator
Viton elastomer
Bolts
300 Series stainless steel
Electropneumatic Actuator
Air Pressure
70 to 100 psig
Solenoid Power
120VAC 50/60Hz, 4Watts
Power Loss
Valve closes
Position Indicators, magnetic
0.5A, 120VAC, 10W maximum
Position Indicators, mechanical
5A, 120/240VAC micro switch
Fastening Torque for Del-Seal CF Port Flanges
8-32 UNC
7 lb-ft
0.250-28 UNF
12 lb-ft
0.312-24 UNF
15 lb-ft
0.375-24 UNF
26 lb-ft
Vacuum
Range
To 1x10
-11
Torr
Leak Test
2x10
-10
cc/sec of He
Sold as is with 30day Right of Return, only pictured items included
Easy return/refund for any reason
Anacapa Equipment
RETURNS
Anacapa Equipment strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items must be received in the same condition as sent. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID.
SHIPPING
All equipment purchased is shipped within one (1) day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost.
We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID.
LIMITED WARRANTY
Buyer acknowledges that the equipment is being sold as is and without any warranty of merchantability or fitness for a particular use. Buyer may inspect the equipment prior to purchase and placement of the order prior to inspection is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of this product for its application. Anacapa Equipment Brokers, Inc. assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the unit will be installed and operated by qualified personnel. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased.
The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty.
Specifications
Manufacturer | MDC Vacuum Products |
Model | Pneumatic Inline Valve |
Condition | Used |
Model # | IV-200M-PAA-03 |
