Atlantic Blowers AB-2102 ABPK-2102 Regenerative Blower Silencers Pressure Kit

Atlantic Blowers AB-2102 ABPK-2102 Regenerative Blower Silencers Pressure Kit

$9,500 (USD)

Goleta, CA

orCall (805)-680-7222

Description

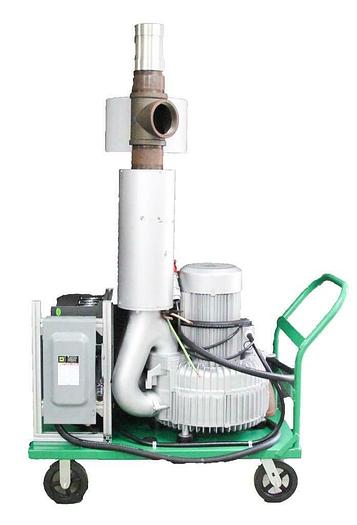

Atlantic Blowers AB-2102 ABPK-2102 Pressure Kit Regenerative Blower w/ Silencers (6948) R In great cosmetic condition. Under 1 Hour use. $22,000 NEW. Scuff marks on the Pressure Filter Canister and External Silencers. Unable to test. The cart is optional and doesn't affect the price. See pictures for more detail. Includes Pressure Kit, Silencers, Cart, Square D Safety Switch, Frequency Drive, 5" Piping, Relief Valve, Pressure Filter Canister and Element Manufacturer: Atlantic Blowers Model #: ABPK-2102 Model: Regenerative Blower with Pressure Kit& Silencers Max. Flow (CFM): 1519 Max. Pressure (inches H2O): 64 Max. Vacuum (inches H2O): 76 Rated Voltage: 230/460 V Phase: 3 Horsepower: 30.00 Rated Freq: 50/60 Hz Rated Effy: 92.4% INS Class: F Rated Curr: 87.0/48.0 A Includes: Variable Frequency Drive Model: GK3000-4T0300G Capacity: 40 hp (30 kW) Dimension: 500*296*276 mm Rated current: 60 A Input voltage: 3 phase 230V /420V /480V AC 15% (Optional) Input frequency: 50Hz/ 60Hz Output voltage: 3 phase AC 0~input voltage Output frequency: 0.00~400.00Hz Over load capacity: 150% of rated current for 1 minute, 180% of rated current for 3 seconds Control mode V/F control; Sensorless vector control; Communication: RS485 Speed regulation: 1:100 Start torque: 150% of rating torque at 1 Hz Speed control accuracy: 0.5% of rating synchronous speed Frequency precision: Digital setting: max frequency x 0.01%; Analog setting: max frequency x 0.2% Frequency resolution: Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz Torque boost: Automatic torque boost, manual torque boost 0.1%~30.0% Interior PID: controller Be convenient to make closed-loop system Automatic energy save running: Optimize V/F curve automatically based on the load to realize power save running Automatic voltage regulation (AVR): Can keep constant output voltage when power source voltage varies. Automatic current limiting: Limit running current automatically to avoid frequent over-current which will cause trip Enclosure rating: IP 20 Temperature: 10~ +40 ; VFD will be derated if ambient temperature exceed 40; each rise 1, the derate will be 5% Humidity: 5%-95%, without condensation Altitude: 1000m; VFD will be derated if above 1000m Impingement and oscillation: Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g) Store environment: 20~ +60; no dust, no corrosive gas, no direct sunlight Uline H-61 Welded Platform Truck Relief Valve AB-20007 5.00" Diameter(Online Price: $1300) Pressure Filter Element AB-EP10007 5.00" Diameter Pressure Filter Canister AB-10007 5.00" Diameter External Silencer AB-40007 5.00" Diameter (x2) 5.00" Piping for Pressure Square D Safety Switch Shipping Dimensions Total Weight (lbs): 950 LxWxH (in): 46 x 46 x 37" Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerAtlantic Blowers
ModelGK3000-4T0300G
ConditionUsed
Model #ABPK-2102
Max. Flow (CFM)1519
Max. Pressure (inches H2O)64
Max. Vacuum (inches H2O)76
Rated Voltage230/460 V
Phase3
Horsepower30.00
Rated Freq50/60 Hz
Rated Effy92.4%
INS ClassF
Rated Curr87.0/48.0 A
Capacity40 hp (30 kW)
Dimension500*296*276 mm
Rated current60 A
Input voltage3 phase 230V /420V /480V AC 15% (Optional)
Input frequency50Hz/ 60Hz
Output voltage3 phase AC 0~input voltage
Output frequency0.00~400.00Hz
Over load capacity150% of rated current for 1 minute, 180% of rated current for 3 seconds
CommunicationRS485
Start torque150% of rating torque at 1 Hz
Speed control accuracy0.5% of rating synchronous speed
Analog settingmax frequency x 0.2%
Digital setting0.01Hz
Torque boostAutomatic torque boost, manual torque boost 0.1%~30.0%
Interior PIDcontroller Be convenient to make closed-loop system
Automatic energy save runningOptimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR)Can keep constant output voltage when power source voltage varies.
Automatic current limitingLimit running current automatically to avoid frequent over-current which will cause trip
Enclosure ratingIP 20
Temperature10~ +40 ; VFD will be derated if ambient temperature exceed 40; each rise 1, the derate will be 5%
Humidity5%-95%, without condensation
Altitude1000m; VFD will be derated if above 1000m
Store environment20~ +60; no dust, no corrosive gas, no direct sunlight
Relief Valve AB-20007 5.00" Diameter(Online Price$1300)
Total Weight (lbs)950
Relief Valve AB-20007 5.00" Diameter (Online Price$1300)
LxWxH (in)46 x 46 x 37"
