Newport 505B Laser Diode Driver, 200/500 mA, 7VDC (6601) W

Newport 505B Laser Diode Driver, 200/500 mA, 7VDC (6601) W

$725 (USD)

Goleta, CA

orCall (805)-680-7222

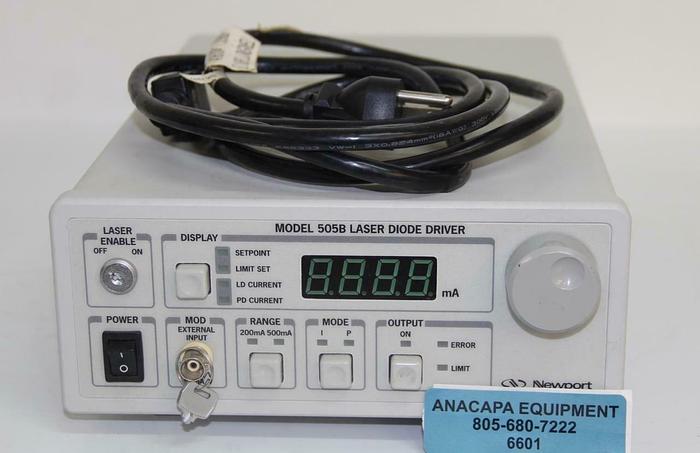

Newport 505B Laser Diode Driver, 200/500 mA, 7VDC (6601) W Item is in good cosmetic condition with some signs of use. Powers on, responds well to inputs. Screen lights up and dial responds. Key for the laser enable is broken off but is still turns with other half of the key. No further testing done. See picture for more details. Manufacturer: Newport Model #/ Model: 505B Laser Diode Driver Description: The 505B Laser Diode Driver is quiet and stable 200 or 500 mA current driver for use in the most demanding applications, such as spectroscopy and fiber optic communications. Two modes constant current or constant laser power. Includes: 505B Laser Diode Driver Power adapter Specifications: Output Current Range (mA): 0-200, 0-500 Output Current Resolution (mA): 0.004, 0.01 Output Current Accuracy (%FS): +/- 0.05 Compliance Voltage (V): 7 Temperature Coefficient (ppm FS/C): <50 Short-Term Stability (1 h) (ppm FS): <10 Long-Term Stability (24 h) (ppm FS): <50 External Analog Modulation: Input Range: 0 to 10V; 10K Transfer Function (mA/V): 20, 50 External Modulation Bandwidth Hi BW: DC to 660, DC to 500 External Modulation Bandwidth Lo BW: DC to 12 Photo-diode Input: Monitor Current Range (mA): 0-5 Monitor Current Stability (24 h) (%FS): +/- 0.02 Monitor Current Accuracy (%FS): +/- 0.05 Photo-diode Bias Voltage (V): 0 to -5 Measurement Display: Output Current Range (mA): 0-200.0, 0-500.0 Output Current Resolution (mA): 0.1 Output Current Accuracy (%FS): +/-0.05 Photo-diode Current Range: 0-5000 A Photo-diode Current Resolution (A): 1.0 Photo-diode Current Accuracy (%FS): +/- 0.05 Voltage Requirements: ~100/120/220/240 VAC, 50/60 Hz Weight: 6 Lb Dimensions: 12x9x4" Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.


Model #/ Model505B Laser Diode Driver
Output Current Range (mA)0-200.0, 0-500.0
Output Current Resolution (mA)0.1
Compliance Voltage (V)7
Temperature Coefficient (ppm FS/C)<50
Short-Term Stability (1 h) (ppm FS)<10
Long-Term Stability (24 h) (ppm FS)<50
Input Range0 to 10V; 10K
Transfer Function (mA/V)20, 50
External Modulation Bandwidth Hi BWDC to 660, DC to 500
Temperature Coefficient (ppm FS/ºC)<50
External Modulation Bandwidth Lo BWDC to 12
Monitor Current Range (mA)0-5
Monitor Current Stability (24 h) (%FS)+/- 0.02
​Input Range0 to 10V; 10K
Monitor Current Accuracy (%FS)+/- 0.05
Photo-diode Bias Voltage (V)0 to -5
Photo-diode Current Resolution (A)1.0
Photo-diode Current Accuracy (%FS)+/- 0.05
Voltage Requirements~100/120/220/240 VAC, 50/60 Hz
Weight6 Lb
​Monitor Current Range (mA)0-5
​Output Current Range (mA)0-200.0, 0-500.0
Photo-diode Current Resolution (µA)1.0
​Voltage Requirements~100/120/220/240 VAC, 50/60 Hz
