Clippard VA-038-GN THNTD Circuit with Latching Control, Tubing (7659) W

Clippard VA-038-GN THNTD Circuit with Latching Control, Tubing (7659) W

$365 (USD)

Goleta, CA

orCall (805)-680-7222

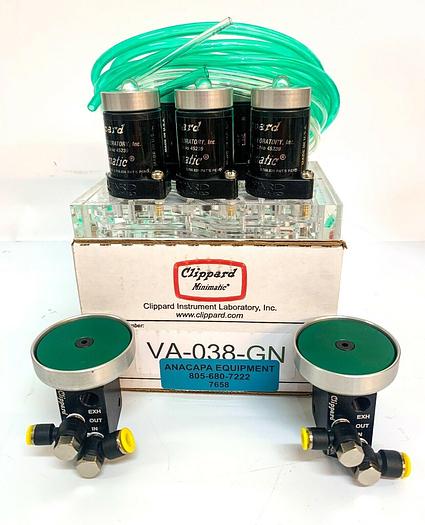

Clippard VA-038-GN THNTD Circuit with Latching Control (7659) W Item is in excellent cosmetic condition with no signs of use. Item is new old stock comes with original packaging. See pictures for more details. Manufacturer: Clippard Model #/ Model: VA-038 GN THNTD Circuit with Latching Control ​Includes: Two R-431 4-Way Spring Return, Fully-Ported, Twin Valve R-431 is a 5 ported, 4-way valve, with spring return and dual pilots. When ports 5 and 2 are connected,a momentary pilot signal at port 4 will shift the valve to the ​Air Flow: 250 l/min @ 100 psig Max PSI: 150 psig Temperature Range: 32 to 180ºF Two R-401 4-Way Valve, Spring Return, Pilot-Operated, Fully-Ported Valve R-401 is a 4-way, spring return, pilot operated, fully ported 5-port valve. R-401 is a versatile component in basic logic circuits, and can perform all 2-, 3- and 4-way functions. Air Flow: 280 lmin @ 100 psig Max PSI: 150 psig Temperature Range: 32 to 180ºF One R-315 3-Way Dual Pilot Valve R-315 is a 3-way, spring return, fully ported valve with two pilots. Either of the two pilots will actuate the valve. Actuating more than one pilot has no additional effect. Pilot signals must be absent at both pilots to release the valve. Air Flow: 280 l/min @ 100 psig Max PSI: 150 psig Temperature Range: 32 to 180ºF ​Two PB-1-GN 3-Way Palm Button Valve ​Air Flow : 170 min @ 100 psig, 99 min @ 150 psig Force: 1.75 lb Manual Input PSI: 100 psig max Max PSI: 150 Ports; Medium: air Ports: 1/8" NPT Temperature Range: 32 to 230ºF ​Tubing ​Specifications: Note* This data was taken from an online source and may not pertain to this particular model. The VA-038 module is for operation of a clamp or cylinder operation where THNTD input is required to be held continuously until the position desired is fully engaged. The THNTD circuit releases the latch and returns the cylinder to the retracted position. Max PSI: 40 to 150 psi Temperature Range: 32 to 140ºF Dimensions: LxWxH": 6x5x4" Weight: 3 Lb Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (“Seller”) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold “as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyer’s right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (“Indemnitees”) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.


​Air Flow170 min @ 100 psig, 99 min @ 150 psig
Max PSI40 to 150 psi
Temperature Range32 to 140ºF
Air Flow280 l/min @ 100 psig
Force1.75 lb Manual
Input PSI100 psig max
Ports1/8" NPT
Weight3 Lb
