Wago 753-550 Analog Output, 753-461 Analog Input, 750-600 End Module (7572)

Wago 753-550 Analog Output, 753-461 Analog Input, 750-600 End Module (7572)

$180 (USD)

Goleta, CA

orCall (805)-680-7222

Description

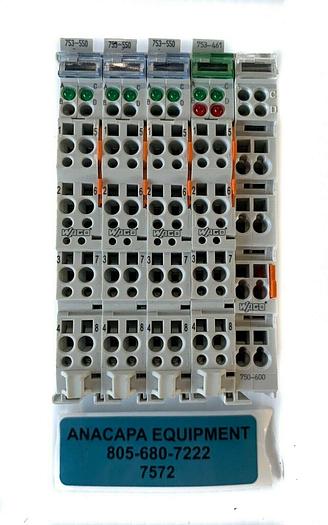

Wago 753-550 2 Channel Analog Output, 753-461 2 Channel Analog Input, 750-600 End Module USED (7572) W Item is in good cosmetic condition with no signs of visible damage. Item was taken from a working system and powers up OK no further testing done. See pictures for more details. Manufacturer: Wago Model #/ Model:753-550, 753-461, 750-600 Includes: Three 753-550 2 Channel Analog Output Module One ​753-461 2 Channel Analog Input One 750-600 End Module Light Grey ​​Specifications: Note* This data was taken from an online source and may not pertain to this particular model. 753-550 2 Channel Analog Output Module This analog output module generates standard 0–10 V signals. The output signal is electrically isolated and transmitted with a resolution of 12 bits. The outputs are short-circuit-protected. The internal system supply powers the module. The output channels have one common ground potential. Note: Pluggable connectors and coding fingers (753 Series) are not included. Number of Analog outputs & Channels : 2 Type of signal Voltage: DC 0... 10V Resolution Bit: 12 Bit Bit Width: 2x 16 ​753-461 2 Channel Analog Input This analog input module directly connects to Pt resistance sensors. Two- or three-wire sensors can be connected.The module automatically linearizes the entire temperature range. A sensor error (short circuit, line break or measurement range overflow) is indicated by a red LED. A green LED indicates readiness for operation and error-free communication with the coupler. The shield directly connects to the DIN-rail. Note: Pluggable connectors and coding fingers (753 Series) are not included. Resolution (over range): 0.1ºC Conversion time: 320 ms System supply Voltage: DC 5V Response time: 4 S 750-600 (End Piece) After the fieldbus node is assembled with the correct bus coupler and I/O modules, the end module is snapped onto the assembly. It completes the internal data circuit and ensures correct data flow.​ Weight: ​ 0.5 Lb Dimensions: LxWxH": 4x2.5x2.5 Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (“Seller”) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold “as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyer’s right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (“Indemnitees”) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerWago
Model753-550 753-461 750-600
ConditionUsed
Model #/ Model753-550, 753-461, 750-600
2
Type of signal VoltageDC 0... 10V
Resolution Bit12 Bit
Bit Width2x 16
Resolution (over range)0.1ºC
Conversion time320 ms
System supply VoltageDC 5V
Response time4 S
