Wago 753-555 4-Channel Analog Output, 753-530 8-Channel Output USED (7573) W
No longer available
Wago 753-555 4-Channel Analog Output, 753-530 8-Channel Output USED (7573) W
$142 (USD)
Goleta, CA
Description

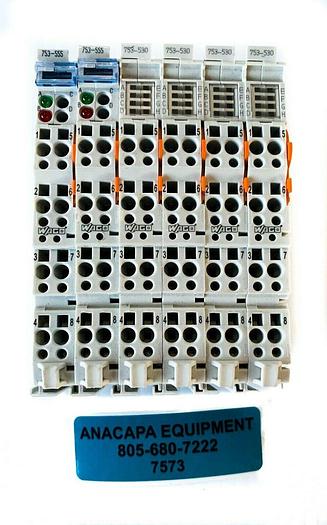

Wago 753-555 4-Channel Analog Output, 753-530 8-Channel Output USED(7573) W
Item is in good cosmetic condition with no signs of visible damage. Item was taken from a working system and powers up OK no further testing done. See pictures for more detail.
Manufacturer: Wago
Model #/ Model: 753-555, 753-530
Includes:
Two 753-555 4-Channel Analog Output
Four 753-530 8-Channel Output
Specifications:
Note*
This data was taken from an online source and may not pertain to this particular data.
753-555
This analog output module generates standard 420 mA signals.
The output signal is electrically isolated and transmitted with a resolution of 12 bits.
Power is derived from the field side.
The module's output channels have a common ground potential.
Note
:Pluggable connectors and coding fingers (753 Series) are not included.
Number of Analog Outputs & Channels: 4
Type of signal current: DC 4...20mA
Resolution: 12 Bit
Conversion Time: 10ms
System supply voltage: DC 5 V
Current consumption: 60mA
Field supply voltage: DC 24 V
753-530
This digital output module features eight channels in a width of just 12 mm (0.47 inch).
The module transmits control signals from the automation device to the connected actuators.
All outputs are short-circuit-protected.
Field and system levels are electrically isolated.
Note:
Pluggable connectors and coding fingers (753 Series) are not included.
Number of digital outputs & channels: 8
Type of Signal Voltage: DC 24 V
Output current per channel: 0.5 A
Switching frequency max: 2 kHz
Current consumption, System supply: 25mA
Weight: 0.7 Lb
Dimensions: LxWxH": 4x3x2.5"
Sold as is with 30 day Right of Return, only pictured items included
Easy return/refund for any reason
Anacapa Equipment
RETURNS
Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID.
SHIPPING
All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost.
We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID.
LIMITED WARRANTY
Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased.
The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty
.
INDEMNITY
Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.
Specifications
Manufacturer | Wago |
Model | 753-530 753-555 |
Condition | Used |
Model #/ Model | 753-555, 753-530 |
Pluggable connectors and coding fingers (753 Series) are not included. | |
Number of Analog Outputs & Channels | 4 |
Type of signal current | DC 4...20mA |
Resolution | 12 Bit |
Conversion Time | 10ms |
System supply voltage | DC 5 V |
Current consumption | 60mA |
Field supply voltage | DC 24 V |
Number of digital outputs & channels | 8 |
Type of Signal Voltage | DC 24 V |
Output current per channel | 0.5 A |
Switching frequency max | 2 kHz |
Current consumption, System supply | 25mA |
Weight | 0.7 Lb |
