AlcoSwitch PC Mountable MRJB3-4 Rotary Switch Max 20VDC Lot of 36 NEW (5439)

AlcoSwitch PC Mountable MRJB3-4 Rotary Switch Max 20VDC Lot of 36 NEW (5439)

$100 (USD)

Goleta, CA

orCall (805)-680-7222

Description

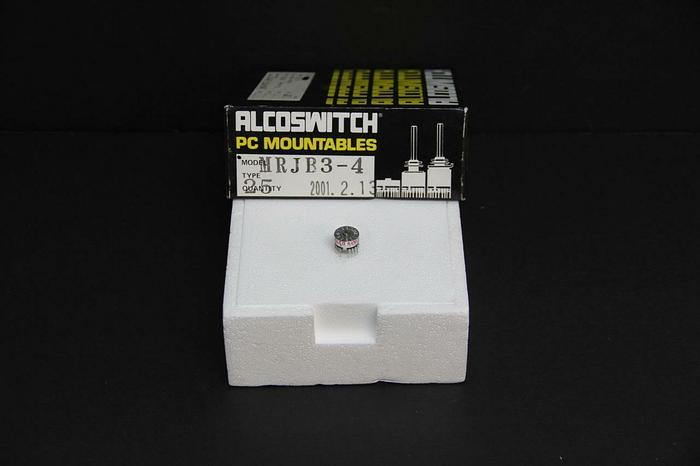

AlcoSwitch PC Mountable MRJB3-4 Rotary Switch 0.4VDC Max 20VD.C Lot of 36 NEW (5439) Original packaging. New, old stock. Opened for pictures. See pictures for more detail. Manufacturer: Alco-Switch Model #: MRJB-3-4 Model: Switch Description: This is a lot of 36 Alco-Switch pc mountable screw top switches. These switches are all rotary switches rated for 0.4VDC. These switches are equipped with 3 poles, 4 fixed (splashproof) Specifications: Typical performance characteristics Contact timing . . . . . non-shorting Contact rating. . . . 0.4 VA max. @ 20 VDC or peak VAC Electrical life . . up to 10,000 cycles @ full contact rating . . up to 30,000 cycles @ 0.1 mA,12 VDC Contact resisitance, initial . . . 30 mOhms max. Insulation resistance . . 10,000 MOhms min. Dielectric strength . . . 1,000 Vrms @ sea level Rotation torque . . . 100 Nmm (14 inch oz) max. Plunger/actuator travel. . .30C Environmental specification Operating temperature . . . -20C to 70C Storage temperature . . . -20C to 70C Solder heat resistance . . . 285C 3C for 15 seconds Material specifications Contacts . . .gold plate over nickel plate Case material. . .. zinc die cast Actuator material . . . brass Terminals/fixed contacts . . . gold plated Terminal seal . . . molded-in epoxy base Process seal . . . MRJB and MRJE Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items must be received in the same condition as sent. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is and without any warranty of merchantability or fitness for a particular use. Buyer may inspect the equipment prior to purchase and placement of the order prior to inspection is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of this product for its application. Anacapa Equipment Brokers, Inc. assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the unit will be installed and operated by qualified personnel. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty. DISCLAIMER This equipment is not intended to be used, and should not be used in human experimentation, nor should this instrument be applied to humans in any way.

Specifications

ManufacturerAlco-Switch
ModelSwitch
ConditionNew
Model #MRJB-3-4
