Cutler-Hammer (Eaton) HND 65K HND312T32W 3-Pole 1200 A Max Circuit Breaker (7134
No longer available
Cutler-Hammer (Eaton) HND 65K HND312T32W 3-Pole 1200 A Max Circuit Breaker (7134
$1,250 (USD)
Goleta, CA
Description

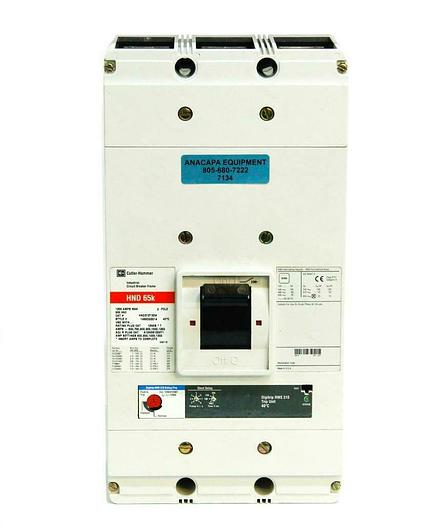

Cutler Hammer HND 65K HND312T32W 3-Pole 1200 Amps MaxCircuit Breaker (7134) R
In fair cosmetic condition. Has a few scuff marks. Includes 3 Lugs w/ Lug Nuts, Digitrip RMS 310. See pictures for more detail.
Manufacturer: Cutler Hammer
Model #/ Model: HND312T32W
600 VAC
Includes: 3 Lugs w/ Lug Nuts, Digitrip RMS 310 Rating Plug
Use with..
Rating Plug CAT: 12NES * T
Amps: 600, 700, 800, 900, 1000, 1200
Amp Settings: 600, 800, 1000, 1200
(These specifications were taken from an online manual and may not be accurate to this product)
# of Poles: 3 Pole
Maximum Continuous ampere rating @ 40C
Diptrip RMS 310 Circuit Breaker Frame Only
High Interrupting Capacity
600 Volt Ac Rated 65 kAIC @ 480 Vac
Options: Independently Adjustable Short Time Pickup and Delay
Trip Unit Type Digitrip RMS 310
RMS Sensing Yes
Breaker Type
Frame N
Ampere Range 400A-1200A
Interrupting Rating @ 480V 50, 65, 100 (kA)
Fixed Rated Plug (In) Yes
Overtemperature Trip Yes
Long Delay Protection (L)
Adjustable Rating Plug (In) Yes
Long Delay Pickup 0.5-1.0 (In)
Long Delay Time I2T 12 Seconds
Long Delay Time I4T No
Long Delay Thermal Memory Yes
High Load Alarm No
Short Delay Protection (S)
Short Delay Pickup 200-800% x (In)
Short Delay Time I2T: No
Short Delay Time Flat: Inst-300ms
Short Delay Time Zone Selective Interlocking: No
Instantaneous Protection (I)
Instantaneous Pickup: 200-800% x(ln)
Discriminator: No
Instantaneous Overide: Yes
Ground Fault Protection (G)
Ground Fault Alarm: No
Ground Fault Pickup: Varies by Frame
Ground Fault Delay: No
Ground Fault Delay Flat: Inst-500 ms
Ground Fault Zone Selective Interlocking: No
Ground Fault Thermal Memory: Yes
System Diagnostics
Status LEDs: Yes
Cause of Trip LEDs No
Magnitude of Trip Information No
Remote Signal Contact Ground Alarm Yes
The following is taken from manufacturer's website and may not be entirely accurate for our item (see our pictures for details):
INTERRUPT RATING
100 kAIC at 240 Vac, 65 kAIC at 480 Vac
FRAME
NG-frame
RATING
80% rated
AMPERAGE RATING
1200A
NUMBER OF POLES
Three-pole
FRAME SIZE
N-frame
SERIES
Series G
TYPE
Digitrip 310
CIRCUIT BREAKER TYPE
HND
FREQUENCY RATING
50-60 Hz
TERMINALS
Without terminals
VOLTAGE RATING
600 Vac
TRIP TYPE
Electronic LSI
Sold as is with 30day Right of Return, only pictured items included
Easy return/refund for any reason
Anacapa Equipment
RETURNS
Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID.
SHIPPING
All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost.
We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID.
LIMITED WARRANTY
Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased.
The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty
.
INDEMNITY
Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.
Specifications
Manufacturer | Cutler Hammer |
Model | HND 65K HND65K HND312T32W |
Condition | Used |
Model #/ Model | HND312T32W |
Includes | 3 Lugs w/ Lug Nuts, Digitrip RMS 310 Rating Plug |
Rating Plug CAT | 12NES * T |
Amps | 600, 700, 800, 900, 1000, 1200 |
Amp Settings | 600, 800, 1000, 1200 |
# of Poles | 3 Pole |
Options | Independently Adjustable Short Time Pickup and Delay |
Short Delay Time I2T | No |
Short Delay Time Flat | Inst-300ms |
Short Delay Time Zone Selective Interlocking | No |
Instantaneous Pickup | 200-800% x(ln) |
Discriminator | No |
Instantaneous Overide | Yes |
Ground Fault Alarm | No |
Ground Fault Pickup | Varies by Frame |
Ground Fault Delay | No |
Ground Fault Delay Flat | Inst-500 ms |
Ground Fault Zone Selective Interlocking | No |
Ground Fault Thermal Memory | Yes |
Status LEDs | Yes |
