Viscotek VE 2001 GPC Max 2501 UV Detector & TDA 301 Chromatography System (6960)

Viscotek VE 2001 GPC Max 2501 UV Detector & TDA 301 Chromatography System (6960)

$5,900 (USD)

Goleta, CA

orCall (805)-680-7222

Description

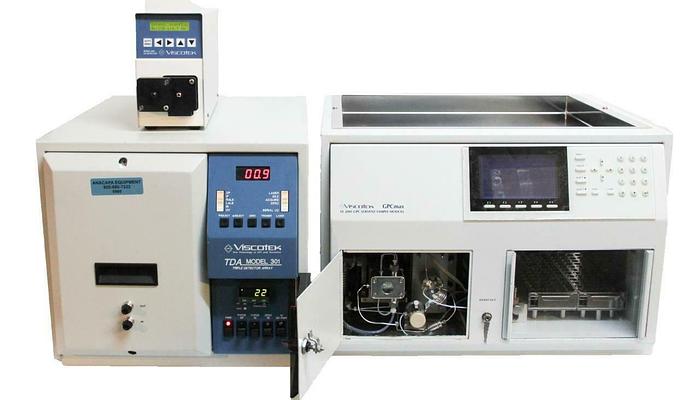

Viscotek VE 2001 GPC Max 2501 UV Detector & TDA 301 Chromatography System (6960) R In good cosmetic condition with minor scuff marks. Turns on, screens and buttons respond well to input. The display for the VE 2001 has some cosmetic damage but displays clearly. Not tested any further, No errors on initial power test. Software is not included. Sold as is with 30 day Right of Return, only pictured items included. See pictures for more detail. Manufacturer: Viscotek Model #: VE 2001 Model: Solvent Sampling Module SPECIFICATIONS Control: Motorola M68000 Communication: RS-232 interface Display: large 240x128 dot matrix LCD Operation Mode: Sample Sequence (Serial OmniSEC software control) *Software Not Included ; Pump (manual control) Flow rate: 0.1 – 10.00 ml/min Pulsation: less than 1% Pressure: selectable in MPa or PSI  max. pressure up to 12 MPa or 1800 PSI Comprehensibility: Programmable from 0.01 to 1.00 Type: Built-in four channel vacuum degasser Degassing Method: Applied vacuum; dissolved gases are continuously removed through a semi permeable membrane Efficiency: 0.5 ppm oxygen at 0.5 ml/min Applied Materials: all parts in contact with the solvent are made of PTFE, Teflon or PEEK. Volume per Channel: about 8 ml Power supply: 110 Vac; 50 / 60 Hz Fuses: for 230 Vac: 2pcs. 1.0 AT-fuses  for 110 Vac: 2pcs. 2.0 AT-fuses Dimensions LxWxH: 19x 22 x 18" Weight: 70 lbs Includes: Post Column Filter (Used) Model #: 301 Model: TDA ((Tetra Detector Array) AC Current: 3.5 Amps 120 V Dimensions(LxWxD): 16 x 21 x 15" Weight: 95 lbs Model #: 2501 Model: UV Detector Description: UV absorbance detector manufactured by Viscotek. The UV detector is an excellent tool for compositional analysis. ​115 V Dimensions (LxWxD): 14 x 4.5 x 7.5" Weight: 8 lbs Includes: (x2) RS232 Male to Female RS232 Female to Female Power Cables (x3) ​Shipping: Weight approx: 260 lbs Dimensions (LxWxH): 31x36x38 Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment strives to offer excellent customer service.   You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items must be received in the same condition as sent.  We DO NOT ship internationally.  IF you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment.  We only charge actual shipping cost.  If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally.  IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold “as is” and without any warranty of merchantability or fitness for a particular use.  Buyer may inspect the equipment prior to purchase and placement of the order prior to inspection is deemed a waiver of Buyer’s right to inspect.  Buyer is responsible for determining the suitability of this product for its application.  Anacapa Equipment Brokers, Inc. assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the unit will be installed and operated by qualified personnel. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty.

Specifications

ManufacturerViscotek
ModelUV Detector
ConditionUsed
Model #2501
ControlMotorola M68000
CommunicationRS-232 interface
Displaylarge 240x128 dot matrix LCD
Flow rate0.1 – 10.00 ml/min
Pulsationless than 1%
Pressureselectable in MPa or PSI  max. pressure up to 12 MPa or 1800 PSI
ComprehensibilityProgrammable from 0.01 to 1.00
TypeBuilt-in four channel vacuum degasser
Degassing MethodApplied vacuum; dissolved gases are continuously removed through a semi permeable membrane
Efficiency0.5 ppm oxygen at 0.5 ml/min
Applied Materialsall parts in contact with the solvent are made of PTFE, Teflon or PEEK.
Volume per Channelabout 8 ml
Power supply110 Vac; 50 / 60 Hz
Vac2pcs. 2.0 AT-fuses
Dimensions LxWxH19x 22 x 18"
Weight8 lbs
AC Current3.5 Amps
Dimensions(LxWxD)16 x 21 x 15"
Dimensions (LxWxD)14 x 4.5 x 7.5"
Weight approx260 lbs
Dimensions (LxWxH)31x36x38
