Commscope FSJ1-50A Cable, Connectors Type N Male to Female 1/4″ LOT of 25 (6993)

Commscope FSJ1-50A Cable, Connectors Type N Male to Female 1/4″ LOT of 25 (6993)

$550 (USD)

Goleta, CA

orCall (805)-680-7222

Description

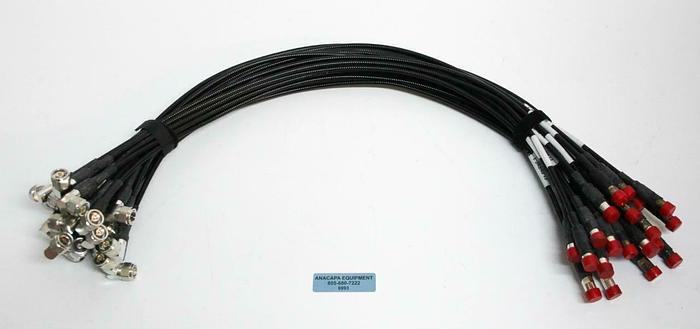

Heliax FSJ1-50A Cable w/ Connectors Type N Male to Female 1/2 LOT of 25 (6993)R In great cosmetic condition. Superflexible Low Density Foam Coaxial Cable, corrugated copper, 1/4 in, black PE jacket. The connectors are Right Angle Male Type N and the opposite end is straight female type N 1/2". Lot of 25 total. See pictures for more detail. Manufacturer: Heliax Model #: FSJ1-50A Model: Coaxial Cable w/ Right Angle Type N Connectors Lot of 25TOTALcables Connection Type: Right Angle Male ToStraight Female 1/2" Type N Coaxial Cable Product Classification Product Classification Brand HELIAX | SureFlex Product Series FSJ1-50A Product Type Coaxial wireless cable Construction Materials Jacket Material PE Outer Conductor Material Corrugated copper Dielectric Material Foam PE Flexibility Superflexible Inner Conductor Material Copper-clad aluminum wire Jacket Color Black Dimensions Nominal Size 1/4 in Cable Length 0 km Cable Weight 0.05 lb/ft | 0.07 kg/m Diameter Over Dielectric 4.826 mm | 0.190 in Diameter Over Jacket 7.366 mm | 0.290 in Inner Conductor OD 1.9050 mm | 0.0750 in Outer Conductor OD 6.350 mm | 0.250 in Electrical Specifications Cable Impedance 50 ohm 1 ohm Capacitance 24.2 pF/ft | 79.4 pF/m dc Resistance, Inner Conductor 3.000 ohms/kft | 9.843 ohms/km dc Resistance, Outer Conductor 2.200 ohms/kft | 7.216 ohms/km dc Test Voltage 1600 V Inductance 0.200 H/m | 0.061 H/ft Insulation Resistance 100000 Mohmskm Jacket Spark Test Voltage (rms) 5000 V The following is taken from the manufacturer's website: Product Classification Brand HELIAX|SureFlex Product Series FSJ1-50A Product Type Coaxial wireless cable Construction Materials Jacket Material PE Outer Conductor Material Corrugated copper Dielectric Material Foam PE Flexibility Superflexible Inner Conductor Material Copper-clad aluminum wire Jacket Color Black Dimensions Nominal Size 1/4 in Cable Weight 0.05 lb/ft|0.07 kg/m Diameter Over Dielectric 4.826 mm|0.190 in Diameter Over Jacket 7.366 mm|0.290 in Inner Conductor OD 1.9050 mm|0.0750 in Outer Conductor OD 6.350 mm|0.250 in Electrical Specifications Cable Impedance 50 ohm 1 ohm Capacitance 24.2 pF/ft|79.4 pF/m dc Resistance, Inner Conductor 3.000 ohms/kft|9.843 ohms/km dc Resistance, Outer Conductor 2.200 ohms/kft|7.216 ohms/km dc Test Voltage 1600 V Inductance 0.200 H/m|0.061 H/ft Insulation Resistance 100000 Mohmskm Jacket Spark Test Voltage (rms) 5000 V Operating Frequency Band 1 18000 MHz Peak Power 6.4 kW Velocity 82 % Environmental Specifications Installation Temperature -40 C to +60 C (-40 F to +140 F) Operating Temperature -55 C to +85 C (-67 F to +185 F) Storage Temperature -70 C to +85 C (-94 F to +185 F) Mechanical Specifications Bending Moment 0.7 N-m|0.5 ft lb Flat Plate Crush Strength 100.0 lb/in|1.8 kg/mm Minimum Bend Radius, Multiple Bends 25.40 mm|1.00 in Minimum Bend Radius, Single Bend 25.40 mm|1.00 in Number of Bends, minimum 15 Number of Bends, typical 20 Tensile Strength 68 kg|150 lb Note Performance Note Values typical, unless otherwise stated Standard Conditions Attenuation, Ambient Temperature 20 C|68 F Average Power, Ambient Temperature 40 C|104 F Average Power, Inner Conductor Temperature 100 C|212 F Return Loss/VSWR Frequency Band VSWR Return Loss (dB) 680960 MHz 1.2 20.80 17002200 MHz 1.2 20.80 22002700 MHz 1.43 15.00 Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerHeliax
ModelCoaxial Cable w/ Right Angle Type N Connectors
ConditionNew
Model #FSJ1-50A
Connection TypeRight Angle Male ToStraight Female 1/2" Type N
