LeCroy 9354AM 500 MHz 4-Channel Digital Oscilloscope (6868)

LeCroy 9354AM 500 MHz 4-Channel Digital Oscilloscope (6868)

$395 (USD)

Goleta, CA

orCall (805)-680-7222

Description

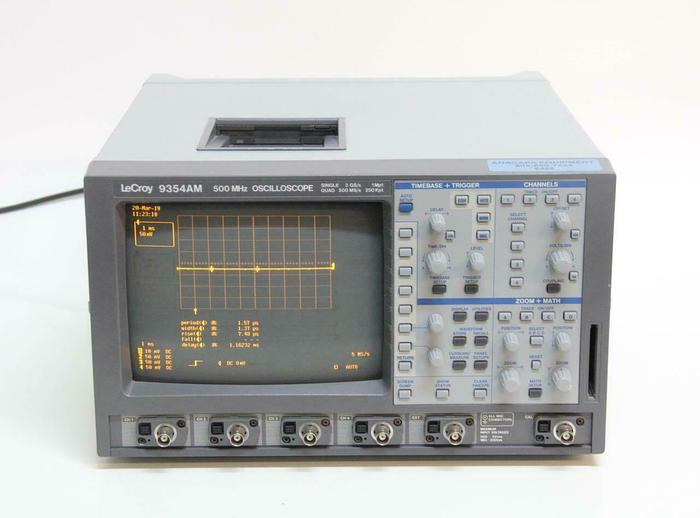

LeCroy 9354AM 500 MHz 4-Channel Digital Oscilloscope (6868) R In great cosmetic condition. Powers on, buttons and screen respond well to input. See pictures for more detail. Not tested. Missing a foot, 2 knobs are broken (not shown in pictures) . Manufacturer: LeCroy Model #: 9354AM Model: 4-Channel Digital Oscilloscope Bandwidth (-3 dB): DC to 500 MHz No. of Channels: 4 (9354A) No. of Digitizers: 4 (9354A) Maximum Sample Rate: 2 GS/s (9354A) Acquisition Memory: Up to 8 M (see table below). Sensitivity: 2 mV/div to 5 V/div, fully variable. Scale factors: A wide choice of over 12 probe attenuation factors are selectable. Offset Range: 2.0 - 9.9 mV/div: ± 120 mV 10.0 - 199 mV/div: ± 1.2 V 0.2 - 5.0 V/div: ± 24 V ±20 V across the whole sensitivity range when using the AP 020 FET probe. DC Accuracy: < or equal to±2% full scale. Vertical Resolution: 8 bits. Bandwidth Limiter: 30 MHz Input Coupling: AC, DC, GND. Input Impedance: 1 M Ohm//14 pF or 50 Ohms ± 1%. Max Input: 1 M Ohm: 250 V (DC+peak AC < or equal to 10 kHz) 50 Ohms: ± 5 V DC (500 mW) or 5 V RMS TIME BASE SYSTEM Timebases: Main and up to 4 Zoom Traces. Time/Div Range: 1 ns/div to 1000 s/div. Clock Accuracy: < or equal to 10 ppm Interpolator resolution: 10 ps Roll Mode: Ranges 500 ms to 1,000 s/div. For > 50k points: 10 s to 1,000 s/div. External Clock: < or equal to 100 MHz on EXT input with ECL, TTL or zero crossing levels up to 500 MHz with option 935XA-CKTRIG. TRIGGERING SYSTEM Trigger Modes: Normal, Auto, Single. Trigger Sources: CH1, CH2, Line, Ext, Ext/10 (9354: CH3, CH4), Slope, Level and Coupling for each can be set independently. Slope: Positive, Negative. Coupling: AC, DC, HF, LFREJ, HFREJ. Pre-trigger recording: 0 to 100% of full scale (adjustable in 0.1 div increments). Post-trigger delay: 0 to 10,000 divisions (adjustable in 0.01% increments). Hold off by time: 10 ns to 20 s. Hold off by events: 0 to 99,999,999 events. Trigger Bandwidth: Up to 500 MHz using HF coupling. Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (“Seller”) strives to offer excellent customer service.   You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent.  We DO NOT ship internationally.  If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment.  We only charge actual shipping cost.  If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally.  IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold “as is" and without any warranty of merchantability or fitness for a particular use.  The entire risk as to the quality and performance of the equipment is with the Buyer.  Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair.  Buyer may inspect the equipment prior to purchase and placement of the order.  Failure to inspect prior to placement of an order is deemed a waiver of Buyer’s right to inspect.  Buyer is responsible for determining the suitability of the equipment for its application.  Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (“Indemnitees”) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller.  The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws.  Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerLeCroy
Model4-Channel Digital Oscilloscope
ConditionUsed
Model #9354AM
Bandwidth (-3 dB)DC to 500 MHz
No. of Channels4 (9354A)
No. of Digitizers4 (9354A)
Maximum Sample Rate2 GS/s (9354A)
Acquisition MemoryUp to 8 M (see table below).
Sensitivity2 mV/div to 5 V/div, fully variable.
Scale factorsA wide choice of over 12 probe attenuation factors are selectable.
DC Accuracy< or equal to±2% full scale.
Vertical Resolution8 bits.
Bandwidth Limiter30 MHz
Input CouplingAC, DC, GND.
Input Impedance1 M Ohm//14 pF or 50 Ohms ± 1%.
TimebasesMain and up to 4 Zoom Traces.
Time/Div Range1 ns/div to 1000 s/div.
External Clock< or equal to 100 MHz on EXT input with ECL, TTL or zero crossing levels up to 500 MHz with option 935XA-CKTRIG.
TRIGGERING SYSTEM Trigger ModesNormal, Auto, Single.
Pre-trigger recording0 to 100% of full scale (adjustable in 0.1 div increments).
Post-trigger delay0 to 10,000 divisions (adjustable in 0.01% increments).
Hold off by time10 ns to 20 s.
Hold off by events0 to 99,999,999 events.
Trigger BandwidthUp to 500 MHz using HF coupling.
