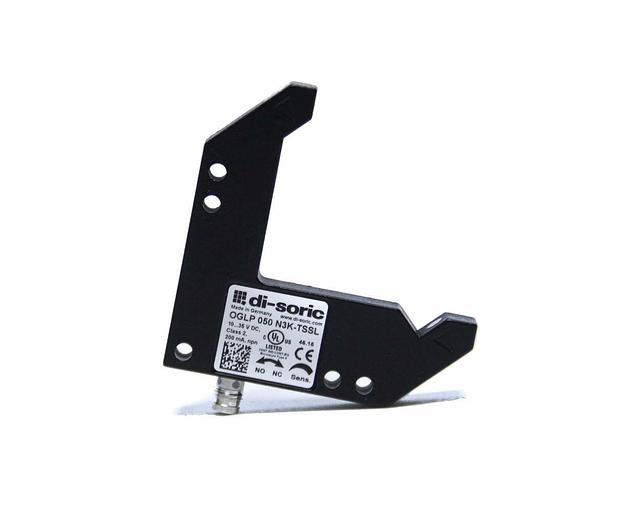

Di Soric OGLP 050 N3K-TSSL Laser Angled Light Barrier (5254)

Di Soric OGLP 050 N3K-TSSL Laser Angled Light Barrier (5254)

$99 (USD)

Goleta, CA

orCall (805)-680-7222

Description

Di Soric OGLP 050 N3K-TSSL Laser Angled Light Barrier Manufacturer: Di-Soric OGLP 050 N3K-TSSL Laser angled light barrier The following chart taken from manufacturer's website: TECHNICAL INFORMATION (typ.) +20°C, 24V DC Operating principle Optical Evaluation digital Size 75 x 75 x 10 mm (Dimensions) Design Angle Branch length 50/50 mm Characteristics High transmit power and dirt penetration Emitted light Infrared, 880 nm, clocked Service voltage 10 ... 35 V DC (Supply Class 2) Internal power consumption < 30 mA Operating distance 60 mm (optical axis) Resolution Ø 3 mm Sensitivity adjustment potentiometer Switching output npn, 200 mA, NO/NC, switchable Switching hysteresis < 0,2 mm Voltage drop < 2,8 V Switching frequency 1.000 Hz Reproducibility 0,06 mm Ambient temperature -10 … +60 °C Ambient light immunity 20 kLx Insulation voltage endurance 500 V Protection class IP 67 Protection degree III, operation on protective low voltage Casing material Die-cast zinc black lacquered finish Connection Connector, M8, 3-poled Connecting cable TK ... Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment strives to offer excellent customer service.   You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items must be received in the same condition as sent. SHIPPING All equipment purchased is shipped within one (1) day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment.  We only charge actual shipping cost.  If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold “as is” and without any warranty of merchantability or fitness for a particular use.  Buyer may inspect the equipment prior to purchase and placement of the order prior to inspection is deemed a waiver of Buyer’s right to inspect.  Buyer is responsible for determining the suitability of this product for its application.  Anacapa Equipment Brokers, Inc. assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the unit will be installed and operated by qualified personnel. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty. DISCLAIMER This equipment is not intended to be used, and should not be used in human experimentation, nor should this instrument be applied to humans in any way.

Specifications

ManufacturerDi-Soric
ModelOGLP 050 N3K-TSSL
ConditionNew
TypeLaser Angled Light Barrier
