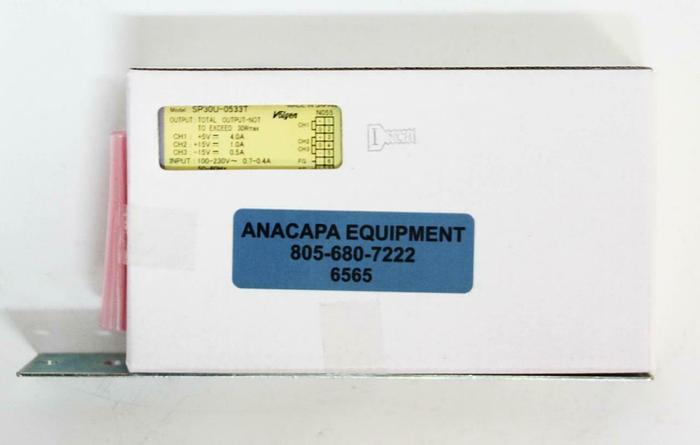

Volgen SP30U-0533T Power Supply Triple Output 5V / 15V /-15 VDC 30W NEW (6565)

Volgen SP30U-0533T Power Supply Triple Output 5V / 15V /-15 VDC 30W NEW (6565)

$75 (USD)

Goleta, CA

orCall (805)-680-7222

Description

Volgen SP30U-0533T Power Supply Triple Output 5V / 15V /-15 VDC 30W NEW (6565)R New old stock. In original packaging. See pictures for more detail. Manufacturer: Volgen Model #: SP30U-0533T Model: Power Supply Specifications: Input Voltage: AC 100-120 / 200-240V (AC85-264V) (DC110-340V) Input Frequency: 50-60 Hz (47-63 Hz) Input Current (AC 100/240V): SP30U .7/.4 (typ), Inrush Current: SP30U 15/30A, Voltage Adjust Range: CH1: +5%,-0%, CH2: Fixed (Factory Set Accuracy +/- 5%) Output Voltage: See Chart Leakage Current: 0.75 mA RMS max. Over-Voltage Protection: Built In Over-Current Protection: Built In (5V output only) Line Regulation: 0.4% Load Regulation: SP15U/30U CH1: 1% CH2, CH3 1% min. Hold-Up Time: 20m sec. Min. Rise Time: SP30U 100 mSEC. Drift: 0.5%+15mV (8hr. after 1 hr. warm up) Ripple Noise (DC~100MHz): 50 mVp-p MTBF. 200,000 Hours Isolation Voltage Primary to Secondary: AC 3000V Primary to Case: AC 1500V (1 min. Cut off current) Secondary to Case: AC 500V Isolation Resistance: Input-Output-Case 100-Mohms min. (DC500V) Vibration: 0.5 mm width, 10-55 Hz/1 min. cycle, 3 directions each 30 min. Shock: 20G (3 directions, each 3 times) Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerVolgen
ModelPower Supply
ConditionNew
Model #SP30U-0533T
Input VoltageAC 100-120 / 200-240V (AC85-264V) (DC110-340V)
Input Frequency50-60 Hz (47-63 Hz)
Input Current (AC 100/240V)SP30U .7/.4 (typ),
Inrush CurrentSP30U 15/30A,
Output VoltageSee Chart
Leakage Current0.75 mA RMS max.
Over-Voltage ProtectionBuilt In
Over-Current ProtectionBuilt In (5V output only)
Line Regulation0.4%
Hold-Up Time20m sec. Min.
Rise TimeSP30U 100 mSEC.
Drift0.5%+15mV (8hr. after 1 hr. warm up)
Ripple Noise (DC~100MHz)50 mVp-p
Primary to SecondaryAC 3000V
Primary to CaseAC 1500V (1 min. Cut off current)
Secondary to CaseAC 500V
Isolation ResistanceInput-Output-Case 100-Mohms min. (DC500V)
Vibration0.5 mm width, 10-55 Hz/1 min.
Shock20G (3 directions, each 3 times)
