Viscotek VE 2001 GPC Max TDA 300 Laboratory Chromatography System +Extras (7455)

Viscotek VE 2001 GPC Max TDA 300 Laboratory Chromatography System +Extras (7455)

$5,000 (USD)

Goleta, CA

orCall (805)-680-7222

Description

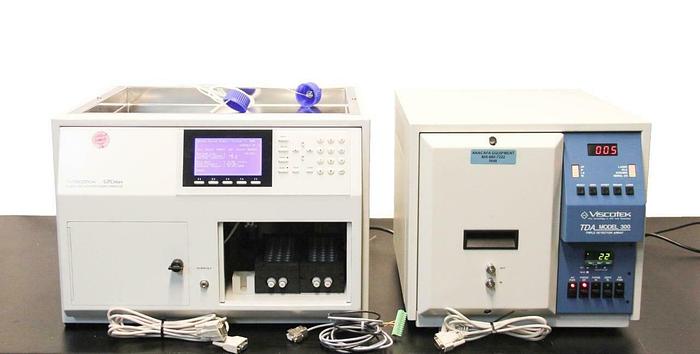

Viscotek VE 2001 GPC Max TDA 300 Laboratory Chromatography System +Extras (7455) R In good cosmetic condition with minor scuff marks. Turns on, screens and buttons respond well to input. The display for the VE 2001 has some cosmetic damage but displays clearly. Not tested any further, No errors on initial power test. Software is not included. See pictures for more detail. Manufacturer: Viscotek Model #: TDA 300 Model: Triple Detector Array Voltage 120 Frequency: 50/60 Hz AC Current: 3.5A (The specifications below are taken from an online pdf.) Capillary Dimensions 0.01”id x 24”L Bridge Balance 1 % Maximum Flow Rate (H2O) 1.5 mL/min Maximum Flow Rate (THF) 3 mL/min DP Noise Maximum* 0.3 mV (0.3Pa) DP Noise Typical* 0.2 mV (0.2Pa) DP Drift Typical** 1.5 mV/hr Weight: 75 lbs Actual Dimensions (LxWxH): 22 x 16 x 15" GPC Max VE 2001 ​ Model #: VE 2001 Model: Solvent Sampling Module SPECIFICATIONS Control: Motorola M68000 Communication: RS-232 interface Display: large 240x128 dot matrix LCD Operation Mode: Sample Sequence (Serial OmniSEC software control) *Software Not Included Flow rate: 0.1 – 10.00 ml/min Pulsation: less than 1% Pressure: selectable in MPa or PSI  max. pressure up to 12 MPa or 1800 PSI Comprehensibility: Programmable from 0.01 to 1.00 Type: Built-in four channel vacuum degasser Degassing Method: Applied vacuum; dissolved gases are continuously removed through a semi permeable membrane Efficiency: 0.5 ppm oxygen at 0.5 ml/min Applied Materials: all parts in contact with the solvent are made of PTFE, Teflon or PEEK. Volume per Channel: about 8 ml Power supply: 110 Vac; 50 / 60 Hz Fuses: for 230 Vac: 2pcs. 1.0 AT-fuses  for 110 Vac: 2pcs. 2.0 AT-fuses Dimensions LxWxH: 19x 22 x 18" Actual Weight: 88 lbs Includes: Viscotek GPC Max VE 2001 User Manual, Power Cord x2, RS232 Female to RS232 Male x2, Post Column Filter (Used) (See photos for more detail.) Shipping Weight: ~240 lbs Dimensions (LxWxH): 31 x 36 x 38 Crating Fee: $75 Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (“Seller”) strives to offer excellent customer service.   You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent.  We DO NOT ship internationally.  If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment.  We only charge actual shipping cost.  If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally.  IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold “as is" and without any warranty of merchantability or fitness for a particular use.  The entire risk as to the quality and performance of the equipment is with the Buyer.  Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair.  Buyer may inspect the equipment prior to purchase and placement of the order.  Failure to inspect prior to placement of an order is deemed a waiver of Buyer’s right to inspect.  Buyer is responsible for determining the suitability of the equipment for its application.  Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (“Indemnitees”) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller.  The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws.  Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerViscotek
ModelSolvent Sampling Module
ConditionUsed
Model #VE 2001
Frequency50/60 Hz
AC Current3.5A
Weight~240 lbs
Actual Dimensions (LxWxH)22 x 16 x 15"
ControlMotorola M68000
CommunicationRS-232 interface
Displaylarge 240x128 dot matrix LCD
Operation ModeSample Sequence (Serial OmniSEC software control) *Software Not Included
Flow rate0.1 – 10.00 ml/min
Pulsationless than 1%
Pressureselectable in MPa or PSI  max. pressure up to 12 MPa or 1800 PSI
ComprehensibilityProgrammable from 0.01 to 1.00
TypeBuilt-in four channel vacuum degasser
Degassing MethodApplied vacuum; dissolved gases are continuously removed through a semi permeable membrane
Efficiency0.5 ppm oxygen at 0.5 ml/min
Applied Materialsall parts in contact with the solvent are made of PTFE, Teflon or PEEK.
Volume per Channelabout 8 ml
Power supply110 Vac; 50 / 60 Hz
Vac2pcs. 2.0 AT-fuses
Dimensions LxWxH19x 22 x 18"
Actual Weight88 lbs
IncludesViscotek GPC Max VE 2001 User Manual, Power Cord x2, RS232 Female to RS232 Male x2,
Dimensions (LxWxH)31 x 36 x 38
Crating Fee$75
