T&C Power Conversion AG1024 Low / Radio Frequency LF RF Generator 2000W (4354)R

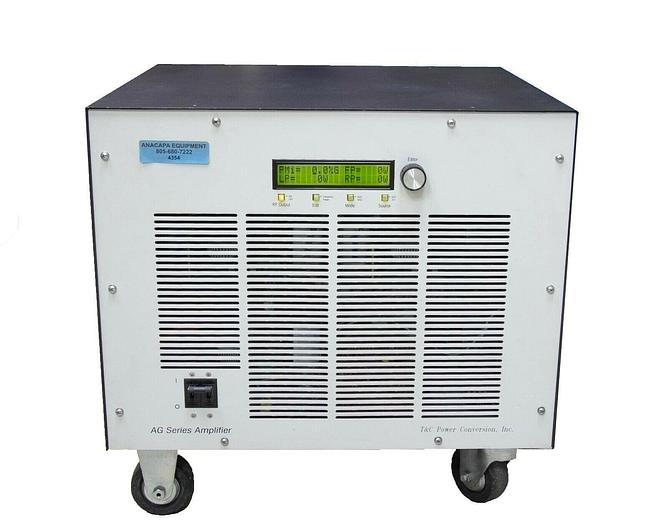

T&C Power Conversion AG1024 Low / Radio Frequency LF RF Generator 2000W (4354)R In good cosmetic condition. Powers on, The digital screen, buttons, and knob respond well to input. See pictures for more detail. Manufacturer: T & C Power Conversion Model #: AG 1024 Model: LF Generator & Amp Description: M odel AG 1024 is a robust source of RF power for ultrasonic, laser modulation, RFI/EMI, plasma generation, laboratory and general industrial applications. Featuring state-of-the-art design of all amplifier stages and a built-inDDS signal source, it provides everything for a complete and reliable, controlled RF power delivery system. The manual & software areavailable on the manufacturer's website. Specifications: (These specifications were taken from an online user manual and may not be accurate to this product.) 20 kHz to 3 MHz 2,000 Watt Digital Meter, measures forward and reflected power. Front Panel Control of Amplifier and Generator Functions. Data acquisition: Status Monitoring & Power Measurement at Analog Port. RS232 Communication: Full Control Of Amplifier & Generator Functions. AGC or Power Leveling: Gain Control to beter than 0.3dB Controllable internal DDS signal source. Pulse and Sweep of RF internal singal generator Specifications: Class of Operation: Class B Frequency: 20 kHz to 3 MHz RF Power Output: 50 Ohm load: Up to 2,000W for 20 kHz to 3 MHz Pulse and low duty cycle Any load: Up to 1,800W, continuous operation. Gain: 63 dB @ 2000W / 0.5 MHz 1.5 dB 20 kHz to 1 MHzRF Input Drive for AGC Recommended: 5 dBm to 0 dBm for 0.5 dB gain flatness Input Drive Source Signal or function generator, analog computer input capable of up to 1 Vp-p @ 50 Ohm Input range: 30 to 0 dBm typical, +5 dBm maximum Internal RF Source DDS oscillator: 20 kHz to 3 MHz, 1 kHz resolution Input and Output Impedance 50 Ohm 2:1 max INPUT VSWR 3:1 max OUTPUT VSWR Output VSWR Protection 400 W max reflected power limit for Load Impedance > 50 Ohm.Current level protection for Load Impedance < 50 Ohm. Harmonic Level @ 1750W Better than 13 dBc for 3-d harmonic, any other better than 20 dBc Spurious Output: 26 dBm equivalent noise level generated by internal circuits RF Output Settings & Control: Front Panel EDITOR and function switches for manual control, RS232 port for GUI or other computer communication. Rear Panel SubD 25 Analog and Digital I/O . Port power scale 1V=250W. Rear Panel BURST operation Pulse range: 1 to 500 usec Period: 1 to 50 milliseconds User settings via GUI and RS232 BURST external DC to > 200 kHz. User defined BURST scheme via SubD-25. See analog port description for more details. SWEEP operation 0.02 to 3MHz. Min time 10 ms, max 10s. Settings and activation from GUI only. Output Blanking For pulsed applications, T&C amplifiers and generators offer blanking of the output signal for minimum noise RF spectrum RF Connectors BNC Female: RF In N Female: RF Out Cooling Forced air, temperature controlled, heatsink temperature monitored via RS232 GUI interface. Acoustic level: 45dBa @ Max Fan Speed @ temp. Case Designed to meet EMI and RFI shielding requirements steel chassis (frame), black conductive finish. Cover, Front and Back Panels AL with yellow conductive finish. Exterior: Front & Back Panel: T&C off-white. Cover: T&C black. Environmental conditions Temp.: 10 to 40 C ambient Humidity: 80% Equipment intended for ISM applications in laboratory and light industrial environment. AC Input Ratings: 2/N/PE ~ 200-240 V, 35 A, 50-60 Hz 2/N/PE ~ 200 V, 42 A, 50-60 Hz 2/N/PE ~ 346-415 V, 16 A, 50-60 Hz Dimensions : Actual Dimensions: 533 x 520 x 470 mm (21 x 20.5 x18.5") Actual Weight: 160 lbs Shipping Dimensions: 32 x 36 x 38" Shipping Weight: 275 LBS Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items must be received in the same condition as sent. SHIPPING All equipment purchased is shipped within one (1) day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is and without any warranty of merchantability or fitness for a particular use. Buyer may inspect the equipment prior to purchase and placement of the order prior to inspection is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of this product for its application. Anacapa Equipment Brokers, Inc. assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the unit will be installed and operated by qualified personnel. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty. DISCLAIMER This equipment is not intended to be used, and should not be used in human experimentation, nor should this instrument be applied to humans in any way.
