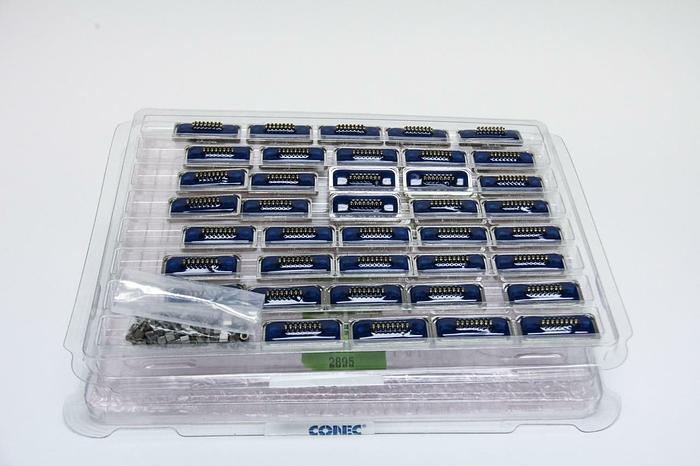

Conec D-Sub 6STD15PAM99B30X Receptacle Male Socket Connectors Lot of 40 (2895)
No longer available
Conec D-Sub 6STD15PAM99B30X Receptacle Male Socket Connectors Lot of 40 (2895)
$150 (USD)
Goleta, CA
Description
Lot of Conec D-Sub Receptacle Female Socket Connectors
Manufacturer: Conec
MPN: 6STD15PAM99B30X
Lot Code: 513
Quantity: Lot of 39
1P67 D-Sub
15-pos
Plug
Solder Cup
General Data
Contact type
Plug
Hardware options mating side
Threaded insert
Mounting style
Straight
Product type
IP67 D-SUB
Size/Number of positions
15-pos.
Termination signal [e.g. clamp, crimp, solder, SMT]
Solder cup
Thread type
UNC 4-40
Material Data
Insulator color
Black
Insulator material
PBT GF UL 94 V-0
Plating signal contact (mating area)
Gold over nickel
Plating signal contact (termination area)
Gold over nickel
Shell material
Brass
Signal contact material
Copper alloy
Technical Data
Specifications
Contact resistance standard
10 mOhm
Current rating signal
7,5 A
Dielectric with standing voltage signal
1000 V
IEC664-1
Extraction force
50 N
DIN41652
IP rating
IP67
IEC 60529
Insertion force
50 N
DIN41652
Mating cycles
50
DIN41652
Quality class
Quality class 3
Working voltage signal
125 V
DIN41652
max. working temperature
+105 C
min. working temperature
-25 C
Sold as is with 30day Right of Return, only pictured items included
Easy Returns
ANACAPA EQUIPMENT
RETURNS
Anacapa Equipment strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items must be received in the same condition as sent.
SHIPPING
All equipment purchased is shipped within one (1) day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost.
LIMITED WARRANTY
Buyer acknowledges that the equipment is being sold as is and without any warranty of merchantability or fitness for a particular use. Buyer may inspect the equipment prior to purchase and placement of the order prior to inspection is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of this product for its application. Anacapa Equipment Brokers, Inc. assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the unit will be installed and operated by qualified personnel. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased.
The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty.
DISCLAIMER
This equipment is not intended to be used, and should not be used in human experimentation, nor should this instrument be applied to humans in any way.
Specifications
Manufacturer | Conec |
Model | D-Sub |
Condition | New |
Type | Receptacle Female Socket Connectors |
Number of pins | 15 |
Gender | Female |
MPN | 6STD15PAM99B30X |
Lot Code | 513 |
Quantity | Lot of 39 |
D-Sub | 1P67 |
Contact resistance standard | 10 mOhm |
Current rating signal | 7,5 A |
Dielectric with standing voltage signal | 1000 V IEC664-1 |
Extraction force | 50 N DIN41652 |
IP rating | IP67 IEC 60529 |
Insertion force | 50 N DIN41652 |
Mating cycles | 50 DIN41652 |
Quality class | Quality class 3 |
Working voltage signal | 125 V DIN41652 |
Max. working temperature | +105° C |
Min. working temperature | -25° C |
