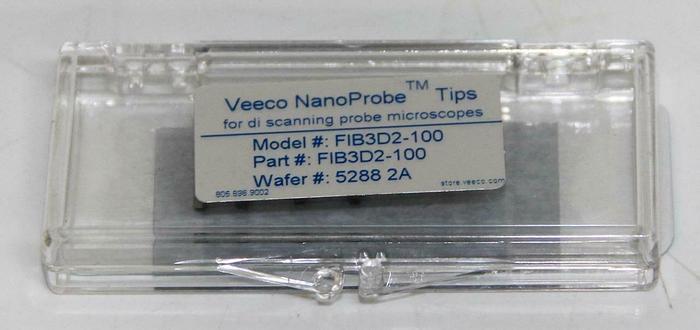

Veeco Nanoprobe Tips FIB3D2-100 Lot of 4 NEW (4500)

Veeco Nanoprobe Tips FIB3D2-100 Lot of 4 NEW (4500)

$320 (USD)

Goleta, CA

orCall (805)-680-7222

Description

Veeco Nanoprobe Tips FIB3D2-100 Lot of 4 New, old stock. Came in a 5 pack but now there is only 4. (4500) Manufacturer: Veeco Model #: FIB3D2-100 Description:Focused Ion Beam (FIB) probe consists of an integrated single crystal TESP silicon cantilever and tip that have been shaped to the desired high aspect ratio. Common applications include semiconductor devices, 3D micro-optics and development of precision metrology methods. FIB tips are designed only for Tapping Mode and for profiling low gaps. FIB tips should not be used in contact mode. This is a lot of 4. Specifications: Tip specification; Geometry: High aspect ratio. Tip height (h): 10-15m. Front angle (fa): 10.5. Back angle (ba): 10.5. Side angle (sa): 10.5. Tip radius (nominal): 10 nm. Tip radius (max): 15 nm. Tip setback (nominal): 15m. Tilt compensation: 3. Tip setback (RNG): 5-25m. SpikeH (RNG): 4000-6000 nm. SpikeW: 100nm. Cantilever specification; Material: 0.01-0.025 Ohm-cm Antimony (n) doped Si. Geometry: Rectangular. Cantilevers number: 1. Cantilevers thickness (nom): 4m. Cantilever thickness (RNG): 3.25-4.75m. Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items must be received in the same condition as sent. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerVeeco
ModelFIB3D2-100
ConditionNew
Model #FIB3D2-100
GeometryHigh aspect ratio
SpecificationsTip specification;
GeometryRectangular.
Tip height (h)10-15m.
Front angle (fa)10.5.
Back angle (ba)10.5.
Side angle (sa)10.5.
Tip radius (nominal)10 nm.
Tip radius (max)15 nm.
Tip setback (nominal)15m.
Tilt compensation3.
Tip setback (RNG)5-25m.
SpikeH (RNG)4000-6000 nm.
SpikeW100nm.
Material0.01-0.025 Ohm-cm Antimony (n) doped Si.
Cantilevers number1.
Cantilevers thickness (nom)4m.
Cantilever thickness (RNG)3.25-4.75m.
