Oregon Micro Systems PC46-42 Intelligent Motion Control PCB OMS PC46 (8471)R

Oregon Micro Systems PC46-42 Intelligent Motion Control PCB OMS PC46 (8471)R

$470 (USD)

Goleta, CA

orCall (805)-6364334

Description

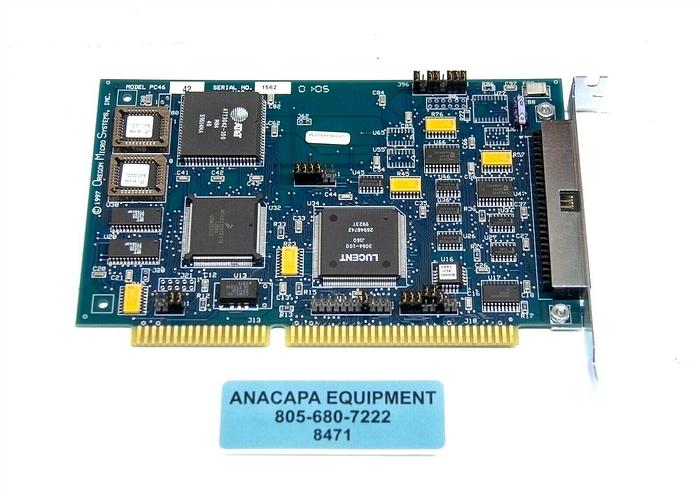

Oregon Micro Systems PC46-42 Intelligent Motion Control PCB USED (8471)R In good cosmetic condition. See pictures for more detail. Manufacturer: Oregon Micro Systems Model: PC46-42 16 reconfigurable IO bits Comparable to PCX-4 Update rate: 1024 per second Specifications: (The following specifications were taken from an online user manual or manufacturer's website and may not be specific to this item, please look at pictures carefully for items included and specifics. These specifications are for reference only.) Stepper Axes Open Loop: 4 User I/O: 16 Velocity: 0 to 522,000 pulses per second simultaneous on each axis Acceleration: 0 to 8,000,000 pulses per second per second Position range: 134,000,000 pulses (67,000,000) Accuracy: Position accuracy and repeatability 0 counts for point to point moves Velocity accuracy 0.01% of peak velocity in jog mode Power: +5 volts at 1 amp typical (from the ISA/AT backplane) ISA/EISA interface: Meets all IBM I/O channel signal specifications and definitions Limit switch inputs: TTL input levels with on-board 2.2K pull up resistor, requires only external switch closure to ground or TTL level input signal. Input sense (low or high true) selectable byon-board jumper for each axis Dimensions Actual Dimensions: 8x6x1" Actual Weight: > 1 lbs Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerOregon Micro Systems
ModelPC46-42
ConditionUsed
Update rate1024 per second
Specifications(The following specifications were taken from an online user manual or manufacturer's website and may not be specific to this item, please look at pictures carefully for items included and specifics. These specifications are for reference only.)
Open Loop4
User I/O16
Velocity0 to 522,000 pulses per second simultaneous on each axis
Acceleration0 to 8,000,000 pulses per second per second
Position range134,000,000 pulses (67,000,000)
AccuracyPosition accuracy and repeatability 0 counts for point to point moves
Power+5 volts at 1 amp typical (from the ISA/AT backplane)
ISA/EISA interfaceMeets all IBM I/O channel signal specifications and definitions
Limit switch inputsTTL input levels with on-board 2.2K pull up resistor, requires only external switch closure to ground or TTL level input signal. Input sense (low or high true) selectable byon-board jumper for each axis
Actual Dimensions8x6x1"
Actual Weight> 1 lbs
