Measurement Computing E-PDIS016 Relay Interface w/ Triad AWSP40-12 USED (8402)R

Measurement Computing E-PDIS016 Relay Interface w/ Triad AWSP40-12 USED (8402)R

$332 (USD)

Goleta, CA

orCall (805)-6364334

Description

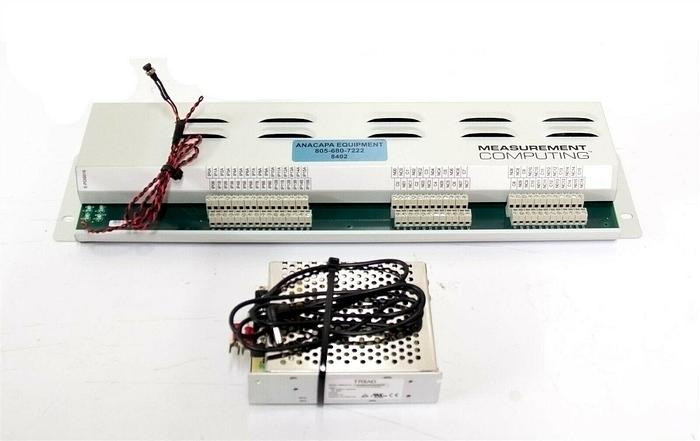

Measurement Computing E-PDIS016 Relay Interface w/ Triad AWSP40-12 USED (8402)R In good cosmetic condition. Taken from a working environment. Unable to test. See pictures for more detail. Manufacturer: Measurement Computing mccdaq Model: E-PDISO16 Ethernet-based replacement for PCI- PDISO16 Isolated Input and Relay Output Ethernet Interface Module Includes: Triad Magnetics AWSP40-12 Power Supply Input: 100-240Vac 1.0A (max), 50-60Hz Output: 12V, 40W, 3.3A Specifications: (The following specifications were taken from an online user manual or manufacturer's website and may not be specific to this item, please look at pictures carefully for items included and specifics. These specifications are for reference only.) Output relay specifications Number: 16 Contact configuration: 16 Form C (SPDT) NO, NC and Common available at connector Contact rating: 6 amperes (A) @ 240 volts AC (VAC) or 28 volts DC (VDC) resistive Contact resistance: 100 milliohms (m?) max. Operate time: 10 milliseconds (ms) max. Release time: 5 ms max. Vibration: 10 to 55 hertz (Hz) (Dual amplitude 1.5 millimeters (mm)) Shock: 10 G (11 ms) Dielectric isolation: 500 V (1 minute) Life expectancy: 10 million mechanical operations, min. Power on state: Not energized. NC in contact to Common. State after RESET button activated: Not energized. NC in contact to Common. Isolated inputs Number 16 Isolation: 500 volts (V) Resistance: 1.6 K ohms (?) min. Voltage Range (DC) Input high: +5.0 VDC min. or 5.0 VDC min. Input low: +1.5 VDC max. or 1.5 VDC max. Input range: ! 30 VDC max. Voltage Range: AC (with filter) Input high: 4.0 Vrms min. (50-1000 Hz) Voltage range Input low: 1.5 Vrms max. (50-1000 Hz) Response Without filter: 20 s With filter: 5 ms Filters Time constant: 5 ms (200 Hz) Filter control: Software programmable at each input Power-up: Filter setting is stored on-board and will remain at the last stored configuration After RESET button activated: Filters off Dimensions Actual Dimensions: 19x5x5" Actual Weight: 4 lbs Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerMeasurement Computing mccdaq
ModelE-PDISO16
ConditionUsed
Input100-240Vac 1.0A (max), 50-60Hz
Output12V, 40W, 3.3A
Specifications(The following specifications were taken from an online user manual or manufacturer's website and may not be specific to this item, please look at pictures carefully for items included and specifics. These specifications are for reference only.)
Number16
Contact configuration16 Form C (SPDT) NO, NC and Common available at connector
Contact rating6 amperes (A) @ 240 volts AC (VAC) or 28 volts DC (VDC) resistive
Contact resistance100 milliohms (m?) max.
Operate time10 milliseconds (ms) max.
Release time5 ms max.
Vibration10 to 55 hertz (Hz) (Dual amplitude 1.5 millimeters (mm))
Shock10 G (11 ms)
Dielectric isolation500 V (1 minute)
Life expectancy10 million mechanical operations, min.
Power on stateNot energized. NC in contact to Common.
State after RESET button activatedNot energized. NC in contact to Common.
Isolation500 volts (V)
Resistance1.6 K ohms (?) min.
Input high4.0 Vrms min. (50-1000 Hz)
Input low1.5 Vrms max. (50-1000 Hz)
Input range! 30 VDC max.
Voltage RangeAC (with filter)
Without filter20 s
With filter5 ms
Time constant5 ms (200 Hz)
Filter controlSoftware programmable at each input
Power-upFilter setting is stored on-board and will remain at the last stored configuration
After RESET button activatedFilters off
Actual Dimensions19x5x5"
Actual Weight4 lbs
