Ametek TMC HAWK/Insight EDII ElectroDamp Vibration Isolation Table System 9421

Ametek TMC HAWK/Insight EDII ElectroDamp Vibration Isolation Table System 9421

$16,150 (USD)

Goleta, CA

orCall (805)-6364334

Description

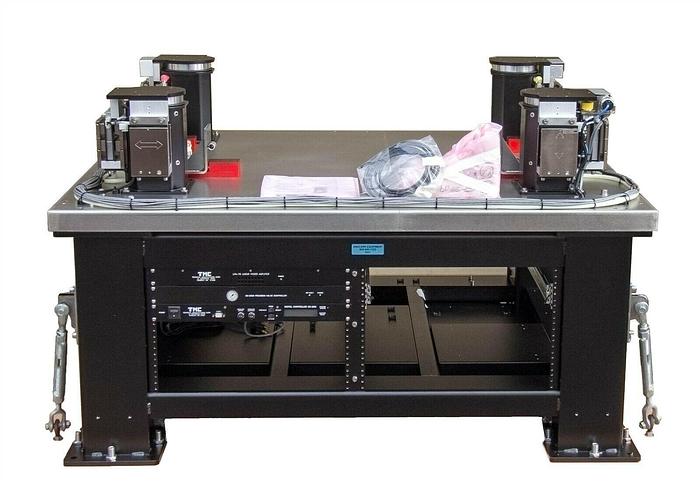

Ametek TMC HAWK/Insight EDII ElectroDamp System Vibration Isolation Table 9421 New old stock. This unit is in great cosmetic condition manufactured for Bruker Insight AFP but never used. It was removed from a vacuum sealed bag for pictures. See pictures for more detail. Manufacturer: Ametek | TMC Model: HAWK Insight EDII (ElectroDampII) System Date of Shipment New: 04/04/2014 Includes: Insight EDII System TMC Table: 24-35425-01 Power Transformer Model: 22-33171-01 Linear Power Amplifier, LPA-70 Model: 22-29474-01 DC-2000 Controller, Insight Model:22-35420-01 DC-2000 Precision Valve Box Model:20-27955-01 CD: Controller Software PN: 95-34577-04, Setup & Operation Manual PN: 96-29581-01 Spare Air Tubing Specifications: (These specifications were taken from an online user manual and may not be accurate to this product.) General Settling time: 0.2 s ** Active degrees of freedom: 6 Height control accuracy: < 10 m at sensors Linear Actuators (horizontal & vertical) DC resistance: 5 O Force constant: up to 12 lb./A | 55 N/A Max. continuous force: 25 lbs. | 110 N Peak force @ 7 A: 87 lbs. | 385 N Electrical time const.: 2.6 ms Stroke: 0.25 in. | 6.4 mm Transverse clearance: 0.09 in. | 2.3 mm Stray field: < 1 G @ 2 in. Dimensions (WxDxH): 2.8 x 6.8 x 4.5 in. Valving (active only) Valve type: Proportional E/V servo Control type: Pressure or air flow Max. flow rate: 1.5 SCFM Air consumption (4 isolators): < 2 SCFM (no stage motion) - 3 dB response: = 10 Hz typ. Height Control Sensors Type: Non-contacting inductive (eddy current) Electronic configuration: Two-wire NAMUR; Three-wire 30 or 18 mm dia. Range: 15 mm nominal for 30 mm wire; 6 mm nominal for 18 mm wire Resolution: < 1 m Passive Pneumatic Mount Standard capacities: 1,000, 2,500, 3,300, 5,700 lbs. @ 80 PSI Damping (10:1): < 3 s DC-2020 Digital Controller Processor: Dual core: DSP @ 150 MHz & Cortex M3 @ 75 MHz Analog I/O: 32/24 channels (16/16 bit) Sampling rate: 5 kHz nominal Front panel: Power switch, 3-color status LED, Ethernet RJ-45, MicroSD card slot, 2x BNC sockets (each can be input or output), 2x USB 2.0 ports (Type B and Micro B), FW upgrade button Rear panel: Power entry, Analog I/O sockets, Pneumatic ports, Ethernet RJ-45, 1x USB 2.0, RS-232 DB 9, Relay socket User interface: GUI via USB or ethernet Power: 90-240 VAC, 50-60 Hz, 100 W max. Dimensions (WxDxH): 16.8 x 9.0 x 1.75 in. Power Amplifier Channels: 8 Max. current per channel: 7 A Type: Linear Peak power: 700 W total Cooling: Ambient, forced air Protection: Resettable fuses, electronic thermal, over current, under voltage Operation: Remote or manual Dimensions: 1 RETMA rack unit height x 15 in. (381 mm) depth Dimensions Actual Dimensions: 45 3/4 x 56 x 35" Shipping Dimensions: 77 x 59 x 48" Shipping Weight: 2160 lbs Crating Fee: Ask for a Quote Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerAmetek | TMC
ModelHAWK Insight EDII (ElectroDampII) System
ConditionUsed
Date of Shipment New04/04/2014
Insight EDII System TMC Table24-35425-01
Power Transformer Model22-33171-01
Linear Power Amplifier, LPA-70 Model22-29474-01
DC-2000 Controller, Insight Model22-35420-01
DC-2000 Precision Valve Box Model20-27955-01
Specifications(These specifications were taken from an online user manual and may not be accurate to this product.)
Settling time0.2 s **
Active degrees of freedom6
Height control accuracy< 10 m at sensors
DC resistance5 O
Force constantup to 12 lb./A | 55 N/A
Max. continuous force25 lbs. | 110 N
Peak force @ 7 A87 lbs. | 385 N
Electrical time const.2.6 ms
Stroke0.25 in. | 6.4 mm
Transverse clearance0.09 in. | 2.3 mm
Stray field< 1 G @ 2 in.
Dimensions (WxDxH)16.8 x 9.0 x 1.75 in.
Valve typeProportional E/V servo
Control typePressure or air flow
Max. flow rate1.5 SCFM
Air consumption (4 isolators)< 2 SCFM (no stage motion)
- 3 dB response= 10 Hz typ.
TypeLinear
Electronic configurationTwo-wire NAMUR; Three-wire 30 or 18 mm dia.
Range15 mm nominal for 30 mm wire; 6 mm nominal for 18 mm wire
Resolution< 1 m
Standard capacities1,000, 2,500, 3,300, 5,700 lbs. @ 80 PSI
Analog I/O32/24 channels (16/16 bit)
Sampling rate5 kHz nominal
Front panelPower switch, 3-color status LED, Ethernet RJ-45, MicroSD card slot, 2x BNC sockets (each can be input or output), 2x USB 2.0 ports (Type B and Micro B), FW upgrade button
Rear panelPower entry, Analog I/O sockets, Pneumatic ports, Ethernet RJ-45, 1x USB 2.0, RS-232 DB 9, Relay socket
User interfaceGUI via USB or ethernet
Power90-240 VAC, 50-60 Hz, 100 W max.
Channels8
Max. current per channel7 A
Peak power700 W total
CoolingAmbient, forced air
ProtectionResettable fuses, electronic thermal, over current, under voltage
OperationRemote or manual
Dimensions1 RETMA rack unit height x 15 in. (381 mm) depth
Actual Dimensions45 3/4 x 56 x 35"
Shipping Dimensions77 x 59 x 48"
Shipping Weight2160 lbs
Crating FeeAsk for a Quote
