Omron EE-SPX613 Liquid Level Photo Microsensor Omron EESPX613 NEW LOT of 2 (4931

No longer available

Omron EE-SPX613 Liquid Level Photo Microsensor Omron EESPX613 NEW LOT of 2 (4931

$76 (USD)

Available quantity: 10

Goleta, CA

Description

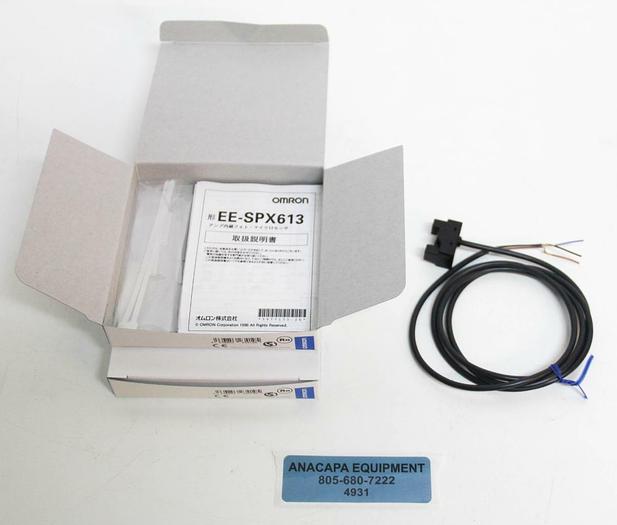

Omron EE-SPX613 Liquid Level Photomicrosensor w/ Built-in Amplifier LOT of 2 (4931) R New old stock. In original packaging. See pictures for more detail. Manufacturer: Omron Model #: EE-SPX613 Model: Photomicrosensor Applicable pipe Any 6- to 13-mm-diameter pipe with a wall thickness of 1 mm that is made of FEP or any other material as transparent as FEP. Sensing object Liquids in pipes (High-viscosity liquids or liquids with floating materials may not be detected.) Light source GaAs infrared LED with a peak wavelength of 940 nm Indicator Light indicator GaP (Red LED: Peak wavelength of 700 nm) Supply voltage 12 to 24 VDC 10%, ripple (p-p): 5% max. Current consumption Average: 30 mA max., Peak: 80 mA max. Control output NPN open collector: Load power supply voltage: 5 to 24 VDC Load current: 100 mA max. OFF current: 0.5 mA max. 100 mA load current with a residual voltage of 0.8 V max. 40 mA load current with a residual voltage of 0.4 V max. Ambient illumination 3,000 lx max. with incandescent light or sunlight on the surface of the receiver Ambient temperature range Operating: 10 to +55C Storage: 25 to +65C (with no icing or condensation) Ambient humidity range Operating: 5% to 85% Storage: 5% to 95% (with no condensation) Vibration resistance Destruction: 10 to 500 Hz, 1.0-mm single amplitude or 150 m/s2 in X, Y, and Z directions 3 times and for 11 min each Shock resistance Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions Degree of protection IEC 60529 IP50 Connecting method Pre-wired (Standard length: 1 m) Accessories Support belt (2), slip protection tube (2), Instruction Manual Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerOmron
ModelPhotomicrosensor
ConditionNew
Model #EE-SPX613
Gap (red ledPeak wavelength of 700 nm)
12 to 24 vdc 10%, ripple (p-p)5% max.
Load power supply voltage5 to 24 VDC
Load current100 mA max.
Off current0.5 mA max.
Operating5% to 85%
Storage5% to 95% (with no condensation)
Destruction500 m/s2 for 3 times each in X, Y, and Z directions
Connecting method pre-wired (standard length1 m)
