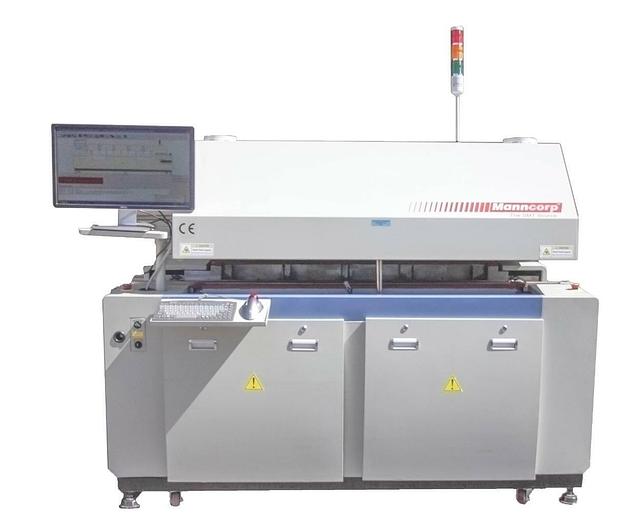

Manncorp CR-4000-C Lead Free 4-Zone SMT Reflow Oven w/ Computer + UPS (9024)

Manncorp CR-4000-C Lead Free 4-Zone SMT Reflow Oven w/ Computer + UPS (9024)

$4,000 (USD)

Goleta, CA

orCall 805.680.7222


Manncorp CR-4000-C Lead Free 4-Zone SMT Reflow Oven w/ Computer + UPS 9024R In good cosmetic condition. Taken from a working environment but may need some work/parts to be fully functional (sells new for $32,000). Listing for parts because we are unable to test. The computer powers on and the the software is accessible but we are unable to power on the main component of the system because we don't have 60 amps in shop to test the machine. The automatic Oilers are Missing and Not included. Ask for Crating Fee Estimations. See pictures for more detail. Belts NOT included. Oilers NOT included. Manufacturer: Manncorp Model #/ Model: CR-4000-C Mfg: 10/2012 Includes: Manncorp CR-4000-C APC UPS 1000 Battery Backup Unit (may need new batteries) Computer (OS: Windows XP)w/ Keyboard and Mouse CR Reflow Application Software + Drivers (Installed + CD Copy) Spare Parts, Chains, bearings,etc.(See pictures for more detail) Hardware key/ Dongle (Flash drive) Specifications: (These specifications were taken from an online user manual and may not be accurate to this product.) Lead Free: Yes Nitrogen Available: No Mesh Belt Width: 20" (500mm) Pin Conveyor: 16" Max. (400mm) Conveyor Speed (per min): 7.8-35.4" (200-900mm) Component Max. Height: 30mm upper, 25mm lower Forced Convection: Yes Number of Heating Zones: 4 Independently Controlled Topside Convection Zones: 2 Lower Convection Zones Controlled by Topside: 1 Cooling Zone Heated Tunnel Length: 52" (1320 mm) Delta T: 2 C PID*: Yes Max Temperature: 300 C Ramp Time (from cold start): < 15 min Flux Management System: No Control: PC (Included) On-Board Profiling: Yes Required Active Exhaust: 400CFM per port Exhaust Vents: 2 Hood Opening Mechanism: Automatic Raise and Lower Power Requirements: Power:220 V, 3-Phase, 60 A, 19KW Dimensions: Actual Dimensions: 79" L x 47.2" W x 57" H Actual Weight: approx.2095 lbs Shipping Dimensions: ~ 87x56x65" Shipping Weight: ~ 2350 lbs !Crating Fee: Call for Estimate! Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.


Model #/ ModelCR-4000-C
Computer (OSWindows XP)w/ Keyboard and Mouse
Specifications(These specifications were taken from an online user manual and may not be accurate to this product.)
Lead FreeYes
Nitrogen AvailableNo
Mesh Belt Width20" (500mm)
Pin Conveyor16" Max. (400mm)
Conveyor Speed (per min)7.8-35.4" (200-900mm)
Component Max. Height30mm upper, 25mm lower
Forced ConvectionYes
Number of Heating Zones4 Independently Controlled
Topside Convection Zones2 Lower Convection Zones
Controlled by Topside1 Cooling Zone
Heated Tunnel Length52" (1320 mm)
Delta T2 C
Max Temperature300 C
Ramp Time (from cold start)< 15 min
Flux Management SystemNo
ControlPC (Included)
On-Board ProfilingYes
Required Active Exhaust400CFM per port
Exhaust Vents2
Hood Opening MechanismAutomatic Raise and Lower
Power220 V, 3-Phase, 60 A, 19KW
Actual Dimensions79" L x 47.2" W x 57" H
Actual Weightapprox.2095 lbs
Shipping Dimensions~ 87x56x65"
Shipping Weight~ 2350 lbs
!Crating FeeCall for Estimate!
