Anaheim Automation 34A106D Hybrid Linear Actuator, 2.9 VDC-3.0 A-130 (8730)W

Anaheim Automation 34A106D Hybrid Linear Actuator, 2.9 VDC-3.0 A-130 (8730)W

$308 (USD)

Goleta, CA

orCall (805)-6364334

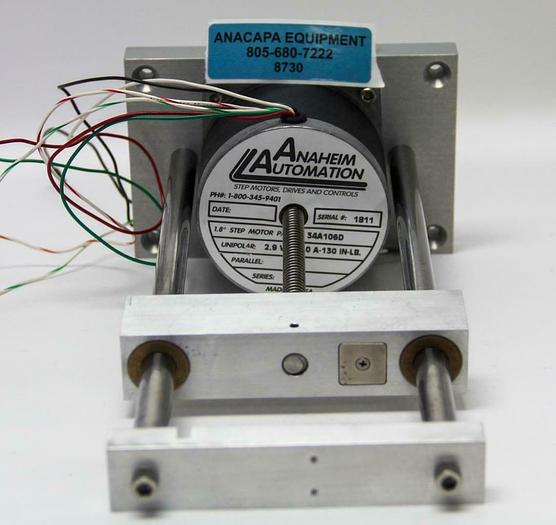

Anaheim Automation 34A106D Hybrid Linear Actuator, 2.9 VDC-3.0 A-130 (8730)W Good cosmetic condition with some signs of use. Unable to test. See pictures for more detail. Manufacturer: Anaheim Automation Model #/ Model: 34A106D Description: The 34A Series stepper motors offers many advantages to users over previous design choices. All of the lower cost digital attributes of a hybrid step motor are retained while the internal conversion to linear motion eliminates the need for other rotary- to-linear conversions such as belt and pulleys, racks and pinions, or external ball screws. Motion designs can be simplified, production costs lowered and product life enhanced. The 34A design captures a bronze acme nut internally such that each normal electrical step sequence results in the linear travel of a mating screw axially. Since the ends of the screw are free-floating, any length can be used; if the motor is fixed, the screw will travel, if the screw is fixed, the motor will travel. Normal open loop drivers can be used. Typical applications for the linear step motor actuator include X-Y tables, pick and place, medical instrumentation, valve adjustment, and test equipment. We can bring together many of the components required to make your application work the best. (Taken from manufacturer website). Specifications: Note* this data was taken from an online source and may not pertain to this particular model. Bipolar RMS Current (A): 2.1 Biopolar RMS Voltage (V): 4 # of Lead Wires: 6 Step Angle Accuracy: +/5% (Full Step, No Load) Resistance Accuracy: +/-10% Inductance Accuracy: +/-20% Temperature Rise: 80C Max (2 Phase On) Ambient Temperature: -20 to +50C Insulation Type: Class B Weight: 7 Lb Dimensions: LxWxH": 14x6x5" Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.


ManufacturerAnaheim Automation
Model #/ Model34A106D
Bipolar RMS Current (A)2.1
Biopolar RMS Voltage (V)4
# of Lead Wires6
Step Angle Accuracy+/5% (Full Step, No Load)
Resistance Accuracy+/-10%
Inductance Accuracy+/-20%
Temperature Rise80C Max (2 Phase On)
Ambient Temperature-20 to +50C
Insulation TypeClass B
Weight7 Lb
