Anaheim Automation MBC10641 Motor Stepper Driver W/ AA2295 B Transformer (8728)W

Anaheim Automation MBC10641 Motor Stepper Driver W/ AA2295 B Transformer (8728)W

$175 (USD)

Goleta, CA

orCall (805)-6364334

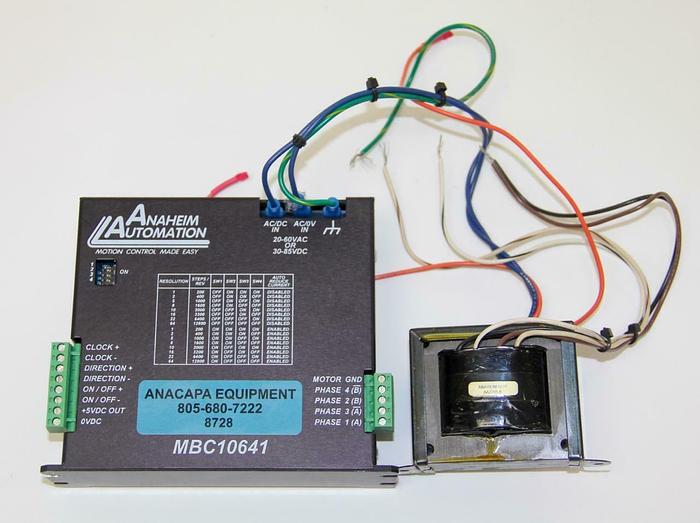

Anaheim Automation MBC10641 Motor Stepper Driver W/ AA2295 B Transformer (8728)W Good cosmetic condition with some signs of use. Unable to test. See pictures for more detail. Manufacturer: Anaheim Automation Model #/ Model: MBC10641, AA2295 B Description: The MBC10641 Microstep Motor Driver has an output capability from 1.5 Amps Minimum to 10 Amps Maximum (Peak Rating). The MBC10641 driver operates from either an AA3621 transformer, where input can be wired from 90-265VAC, or a DC voltage of 30 to 85 Volts. The inputs are opto-isolated with a minimum sourcing of 7 mA per input (5VDC Minimum to 24VDC Maximum). The clock input is set to receive either positive or negative edge clocks with a maximum frequency of 400kHz. The direction input is current sourcing for CW and no current for CCW. The ON/OFF feature is current sourcing to de-energize the step motor and no current to energize the motor. Reduce Current Enabled automatically reduces motor current 70% after last step (1 sec delay). The driver has built-on features to indicate power on (Green LED), clocks being received (Yellow LED), and fault conditions (Red LED). Protection devices have been added to this driver for Phase-to-Phase short-circuit, motor mis-wire conditions, over-voltage and over-temperature. The MBC10641 driver requires a transformer, which is included. (Taken from manufacturer website). Included: Note* this data was taken from an online source and may not pertain to this particular model. Anaheim Automation MBC10641 Stepper Driver Current Range (A): 1.5- 10.0 Voltage Requirement: 20 - 60 VAC or 30 - 85 VDC Steps per Revolution: 200 - 12800 Input Clock Frequency: 1 Hz to 400 kHz Minimum Input Current (Clock & Direction): 7.0 mA Minimum Input Current (On/Off): 1.0 mA Input Signal Voltage: 3.5 VDC to 24.0 VDC Storage Temperature: 0 to 50C Absolute Maximum Driver Temperature: 70C 10 Amps/Phase Output Current Anaheim Automation AA2295 B Transformer Weight: 5 Lb Dimensions: LxWxH": 6x5x5" Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.


ManufacturerAnaheim Automation
Model #/ ModelMBC10641, AA2295 B
Current Range (A)1.5- 10.0
Voltage Requirement20 - 60 VAC or 30 - 85 VDC
Steps per Revolution200 - 12800
Input Clock Frequency1 Hz to 400 kHz
Minimum Input Current (Clock & Direction)7.0 mA
Minimum Input Current (On/Off)1.0 mA
Input Signal Voltage3.5 VDC to 24.0 VDC
Storage Temperature0 to 50C
Absolute Maximum Driver Temperature70C
Weight5 Lb
