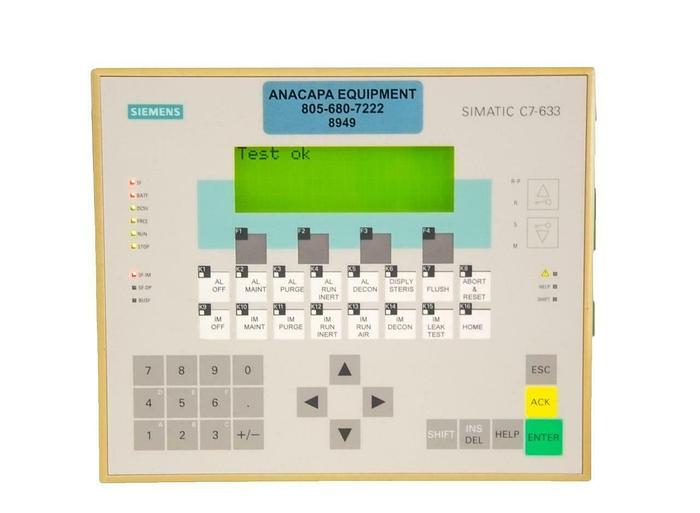

Siemens Simatic C7-633 6ES7633-1DF02-0AE3 Control System PLC USED (8949)R

Siemens Simatic C7-633 6ES7633-1DF02-0AE3 Control System PLC USED (8949)R

$1,235 (USD)

Goleta, CA

orCall (805)-6364334

Description

Siemens Simatic C7-633 6ES7633-1DF02-0AE3 Control System PLC USED (8949)R In good cosmetic condition. Powers on, buttons and digital screen respond well to input. Taken out of a working environment. Power supply is NOT included. See pictures for more detail. Manufacturer: Siemens Model #/ Model: Simatic C7-633 | 6ES7633-1DF02-0AE Specifications:(These specifications were taken from an online user manual and may not be accurate to this item.) Design of display LCD backlit Line display Number of lines 4th Number of characters per line 20th Character size 8 mm Backlighting MTBF backlighting (at 25 C) 100,000 h;about 11 years Control elements Keyboard fonts Function keys - Number of function keys 16 - Number of softkeys 4th Supply voltage Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 30.2 V Load voltage L + Rated value (DC) 24 V permissible range, lower limit (DC) 20.4 V permissible range, upper limit (DC) 28.8 V Input current Current consumption, typ. 550 mA Current consumption, max. 1 A Power loss Power loss, typ. 12 W. Memory Work memory integrated 48 kbytes;16 K instructions RAM Load memory expandable FEPROM Yes expandable FEPROM, max. 512 kbytes integrated RAM, max. 80 kbytes Backup present Yes with battery Yes;all data without battery Yes;4 736 bytes: parameterizable for memory bits, times, counters, data CPU processing times for bit operations, typ. 0.3 s for bit operations, max. 0.6 s for word operations, typ. 1 s for fixed point arithmetic, typ. 2 s for floating point arithmetic, typ. 50 s for timer / counter operations, typ. 12 s CPU blocks DB Number, max. 255;DB 0 reserved FB Number, max. 192;see instruction list FC Number, max. 192;see instruction list IF Number, max. see instruction list Number of free cycle OBs 1;OB 1 Number of time alarm OBs 1;OB 10 Number of cyclic interrupt OBs 1;OB 35 Number of process alarm OBs 1;OB 40 Number of startup OBs 1;OB 100 Number of asynchronous error OBs 7;OB 80, 81, 82, 85, 87, 121, 122 Nesting depth by priority class 8th Counters, timers and their retentivity S7 counter Number 64 Retentivity - adjustable Yes - lower limit 0 - upper limit 63 Counting range - lower limit 0 - upper limit 999 S7 times Number 128 Retentivity - adjustable Yes - lower limit 0 - upper limit 127 Time range - lower limit 10 ms - upper limit 9 990 s Data areas and their retentivity Flag Number, max. 256 bytes Retentivity available Yes of which retentive with battery 0 to 2047 of which retentive without battery 0 to 2047 Address area I / O address area inputs 1 kbyte Outputs 1 kbyte Process image inputs 128 bytes Outputs 128 bytes Hardware configuration connectable programming devices / PCs SIMATIC PG / PC, standard PC Number of modules per system, max. 8th Number of modules per DP slave interface, max. 32;122 byte address space per DP station Interface modules Interface module IM 360 integrated Yes Number of DP masters integrated 0 via CP 1;CP 342-5 Number of operable FMs and CPs (recommended) FM 8th CP, PtP 4th CP, LAN 2 Expansion modules Analog inputs / outputs, max. 192 Digital inputs / outputs, max. 768 Number of expansion modules, max. 24 Rack Modules per rack, max. 8th Number of lines, max. 3 Time of day Clock Hardware clock (real-time) Yes;CPU Software clock Yes;OP Digital inputs Number of digital inputs 16 Input voltage Rated value (DC) 24 V for signal "0" -3 to + 5V for signal "1" +11 to + 30V Input current for signal "1", typ. 11.5 mA Input delay (for rated value of input voltage) for standard inputs - at "0" to "1", max. 4.8 ms;typically 3 ms Cable length shielded, max. 1,000 m unshielded, max. 600 m Digital outputs Number of digital outputs 16 Short-circuit protection Yes;Clocked electronically Limitation of inductive shutdown voltage to 48 V Switching capacity of the outputs on lamp load, max. 5 W Output voltage for signal "1", min. L + (-0.8 V) Output current for signal "1" rated value 0.5 A for signal "1" minimum load current 5 mA for signal "0" residual current, max. 0.5 mA Switching frequency with resistive load, max. 100 Hz with inductive load, max. 0.5 Hz Total current of the outputs (per group) all mounting positions - up to 20 C, max. 4 A - up to 40 C, max. 2 A Cable length shielded, max. 1,000 m unshielded, max. 600 m Universal inputs Number of universal inputs 4th usable as UI1, UI2: Digital / alarm input 24 V DC or up / down counter;UI3: Digital / alarm input 24 V DC or up / down counter or frequency / period duration counter;UI4: Digital / alarm input 24 V DC Input voltage Rated value (DC) 24 V for signal "0" -3 to + 5V for signal "1" +11 to + 30V Input current for signal "1" typ.11.5 mA Cable length shielded, max. 1,000 m Analog inputs Number of analog inputs 4th permissible input voltage for voltage input (destruction limit), max. 30 V permissible input current for current input (destruction limit), max. 30 mA Cycle time (all channels), typ. 2 ms Input ranges Voltage Yes Current Yes Input ranges (rated values), voltages -10 V to +10 V Yes - Input resistance (-10 V to +10 V) 50 k Input ranges (rated values), currents -20 mA to +20 mA Yes 4 mA to 20 mA Yes - Input resistance (4 mA to 20 mA) 105.5 k Analog outputs Number of analog outputs 4th Voltage output, short-circuit protection Yes Voltage output, short-circuit current, max. 25 mA Current output, no-load voltage, max. 16 V; Cycle time (all channels) max. 4 ms;typ. 2 ms Output ranges, voltage -10 V to +10 V Yes Output ranges, current -20 mA to +20 mA Yes 4 mA to 20 mA Yes Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerSiemens
ModelC7-633 6ES7633-1DF02-0AE3
ConditionUsed
Model #/ ModelSimatic C7-633 | 6ES7633-1DF02-0AE
Specifications(These specifications were taken from an online user manual and may not be accurate to this item.)
Without battery Yes;4 736 bytesparameterizable for memory bits, times, counters, data
