Bk Precision 1823 175 MHz Digital LED Universal Counter Display (7480)W
No longer available
Bk Precision 1823 175 MHz Digital LED Universal Counter Display (7480)W
$90.25 (USD)
Goleta, CA
Description
Bk Precision 1823 175 MHz Digital LED Universal Counter Display (7480)W

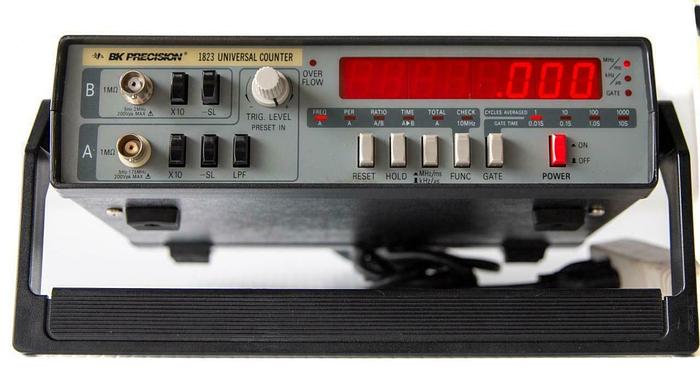

In good cosmetic condition. Powers on, lights and buttons respond to input. Not tested any further. See pictures for more detail.
Manufacturer: BK Precision
Model #/ Model: 1823
Specifications:
Note
this specifications are taken from an online source and may not pertain to this particular model.
Power Supply Included
Range
175 MHz
FUNCTIONS
Frequency, Totalize, Period, Time Interval, Ratio
Time Base Stability
+-0.1ppm
Best Resolution
0.1Hz
No. of Digits
8
Display Hold, Low Pass Filter
Sensitivity
20 mVrms
Remote Start-Stop, Self Test
FREQUENCY
kHz MODE
5 Hz to 175 MHz
MHz MODE
50kHz to 175MHz, 50MHz to 175MHz sinewave
ACCURACY
+-1 count +- 1 time base error
PERIOD CHARACTERISTICS
RANGE
0.5 us to 200,000 us
CONTROL
Manual reset and hold from the front panel START/STOP jack is low
INPUT CHARACTERISTICS
SENSITIVITY
20mV rms, 5 Hz to 5 MHz
50 mV rms, 5 Hz to 125 MHz
100 mV rms, 125 MHz to 150 MHz
150 mV rms, 150 MHz to 175 MHz
IMPEDANCE
1 M (<40 pF)
ATTENUATOR
x1/x10, switch selectable
COUPLING
AC
FILTER
100 kHz, -3 dB switch selectable
LOGIC LEVELS
Standard TTL levels
LOADING
One standard TTL gate
TIME BASE CHARACTERISTICS
STANDARD TYPE
Crystal controlled oscillator
FREQUENCY
10MHz (INT, EXT)
STABILITY
+-0.1 ppm (+-1 Hz)
LINE VOLTAGE STABILITY
Less 1 ppm with +- 10% line volt variation
TEMPERATURE STABILITY
+- 1 ppm (from 0 0 C to 28 0 C) 0 0 C to 50 0 C ambient, +-0.5ppm from 18 0C to 28 0C
EXTERNAL TIME BASE INPUT
10MHz, > 1.77V rms
DISPLAY CHARACTERISTICS
DISPLAY
0.56'' seven segment LED - 8 digits
LED INDICATORS
For kHz, MHz, usSEC, Gate, and overflow indicators
GENERAL
POWER REQUIREMENTS
50/60 Hz 12W
120/220/240 VAC +- 10%,
Battery operation
6AA
DIMENSIONS (HxWxD)
2.8x10.2x8.3'' (71x261x211mm)
WEIGHT
3.98 lbs. (1.8 kg)
Sold as is with 30 day Right of Return, only pictured items included
Easy return/refund for any reason
Anacapa Equipment
RETURNS
Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID.
SHIPPING
All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost.
We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID.
LIMITED WARRANTY
Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased.
The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty
.
INDEMNITY
Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.
Specifications
Manufacturer | BK Precision |
Condition | Used |
Model #/ model | 1823 |
