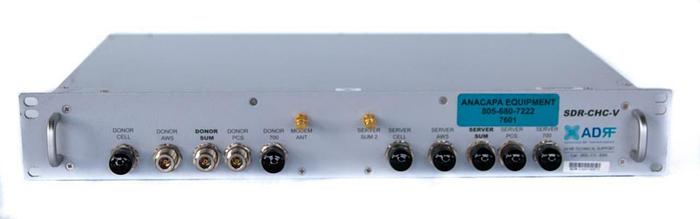

Advanced RF Technologies ADRF SDR-CHC-V, Cell PCS AWS Channel Combiner USED 7601

Advanced RF Technologies ADRF SDR-CHC-V, Cell PCS AWS Channel Combiner USED 7601

$800 (USD)

Goleta, CA

orCall (805)-6364334


Advanced RF Technologies SDR-CHC-V, Cell PCS AWS Channel Combiner USED (7601) W Item is in good cosmetic condition no visible damage. Item was taken from a working environment no further testing done. See pictures for more details. Manufacturer: Advanced RF Technologies Model #/ Model: SDR-CHC-V Description: Channel Combiner, 700 MHz, N-Type Female and SMA Female Connector, 5W to 20W, 18 dB Return Loss, Specifications: Note* This data was taken from an online source and may not pertain to this particular model. No Power Adapter or Cables Included 700MHz Frequency Range: 698-787 MHz Center Frequency: 742.5 MHz Band Width: 89 MHz Coupling Ports: 24dB +/- 2dB Cell Frequency Range: 824-894 MHz Center Frequency: 859 MHz Bandwidth: 70 MHz Coupling Ports: 24dB +/- 2dB PCS Frequency Range: 1850-1995 MHz Center Frequency: 1922.5 MHz Bandwidth: 145 MHz Coupling Ports: 15dB +/- 2dB AWS Frequency Range: 1710-1755 MHz 2110-2155 MHz Center Frequency: 1732.5 MHz 2132.5 MHz Bandwidth: 90 MHz Coupling Ports: 15dB +/- 2dB Applies to all of the above: Insertion Loss: 0.7 dB (Max) Passband Ripple: 0.4 dB (Max) Return Loss: 18 dB (Min) Isolation: 40 dB (Min) Power Rating (Average): 5W (Input Ports); 20W (Sum Port) Operating Temp: -22 - 140 F Weather Resistance: IP40 / NEMA 1 Weight: ~ 9Lb Dimensions: LxWxH": 18x11x2.5" Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.


ManufacturerAdvanced RF Technologies
Model #/ ModelSDR-CHC-V
Frequency Range1710-1755 MHz 2110-2155 MHz
Center Frequency1732.5 MHz 2132.5 MHz
Band Width89 MHz
Coupling Ports15dB +/- 2dB
Bandwidth90 MHz
Insertion Loss0.7 dB (Max)
Passband Ripple0.4 dB (Max)
Return Loss18 dB (Min)
Isolation40 dB (Min)
Power Rating (Average)5W (Input Ports); 20W (Sum Port)
Operating Temp-22 - 140 F
Weather ResistanceIP40 / NEMA 1
Weight~ 9Lb
