Maxon 339152 DC Motorized Translation Stage For Micromanipulators, 24V (8717)W

Maxon 339152 DC Motorized Translation Stage For Micromanipulators, 24V (8717)W

$300 (USD)

Goleta, CA

orCall (805)-6364334

Description

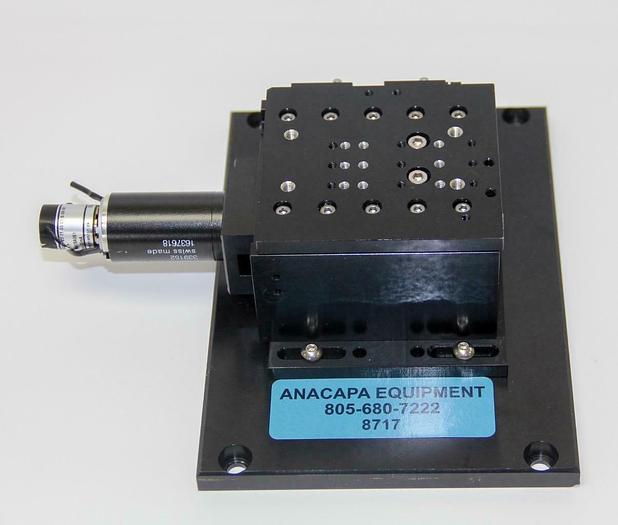

Maxon 339152 DC Motorized Translation Stage For Micromanipulators, 24V (8717)W Good cosmetic condition with some signs of use. Unable to test. See pictures for more detail. End of sensor missing and slightly bent. Manufacturer: Maxon Model #/ Model: 339152 Included: Maxon DC Motor 339152 Motorized Translation Stage Dimensions: LxW": 3.5x3.5" Base Plate: Dimensions: LxW": 7x5" Specifications: Note* this data was taken from an online source and may not pertain to this particular model. Values at nominal voltage Nominal voltage: 24 V No load speed: 10400 RPM No load current: 40.2 mA Nominal speed: 9690rpm Nominal torque (max. continuous torque): 30.4 mNm Nominal current (max. continuous current): 1.5 A Stall torque: 325 mNm Stall current: 15.6 A Max. efficiency: 88 % Characteristics Terminal resistance: 1.53 Terminal inductance:0.186 mH Torque constant: 20.8mNm/A Speed constant: 460 rpm/V Speed / torque gradient: 34rpm/mNm Mechanical time constant: 5.24 ms Rotor inertia: 14.7 gcm Encoder Specifications: TYPE Nr: SCH16G-360-03-11-50-01-S-00-S1 FABR Nr: 150528-960517 IDENT NR: CG3H1D3MAK1SA0S1 Voltage: 5-30VDC/MAX.35mA Dimensions: (LxWxH)": 7x7.5"x3" Weight: 4 Lb Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.

Specifications

ManufacturerMaxon
Model339152
ConditionUsed
Model #/ Model339152
Nominal voltage24 V
No load speed10400 RPM
No load current40.2 mA
Nominal speed9690rpm
Nominal torque (max. continuous torque)30.4 mNm
Nominal current (max. continuous current)1.5 A
Stall torque325 mNm
Stall current15.6 A
Max. efficiency88 %
Terminal resistance1.53
Terminal inductance0.186 mH
Torque constant20.8mNm/A
Speed constant460 rpm/V
Speed / torque gradient34rpm/mNm
Mechanical time constant5.24 ms
Rotor inertia14.7 gcm
TYPE NrSCH16G-360-03-11-50-01-S-00-S1
FABR Nr150528-960517
IDENT NRCG3H1D3MAK1SA0S1
Voltage5-30VDC/MAX.35mA
Weight4 Lb
