MDC 323022 IV-200M-PAA Pneumatic Inline Valve 2" UHV (6111)

MDC 323022 IV-200M-PAA Pneumatic Inline Valve 2" UHV (6111)

$1,140 (USD)

Goleta, CA

orCall (805)-6364334

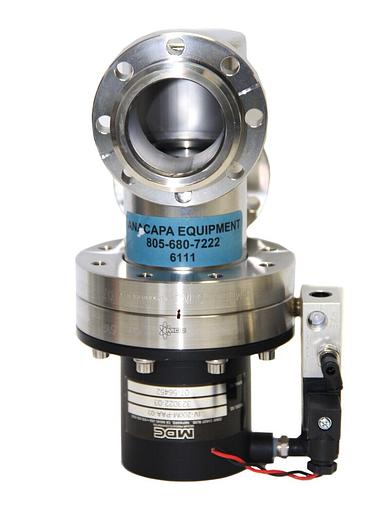

MDC IV-200M-PAA-03 323022-03 Pneumatic Inline Valve 2" UHV Electropneumatic 6111 R In greatcosmetic condition. Very minor scuff marks.See pictures for more detail. Manufacturer: MDC Vacuum Products Model #: 1V-200M-PAA-03 Model: Pneumatic Inline Valve Air Control Solenoid Valve323022-0 2" Port Poppet elastomer seals made of Viton Stainless Steel Construction Electropneumatic operation Air-open / spring-close air cylinder Specifications Material Flanges 304ss Valve Body 304ss Air Cylinder Teflon coated Aluminium Actuator Seal AM-350 welded bellows Gaskets, pneumatic actuator Viton elastomer Bolts 300 Series stainless steel Electropneumatic Actuator Air Pressure 70 to 100 psig Solenoid Power 120VAC 50/60Hz, 4Watts Power Loss Valve closes Position Indicators, magnetic 0.5A, 120VAC, 10W maximum Position Indicators, mechanical 5A, 120/240VAC micro switch Fastening Torque for Del-Seal CF Port Flanges 8-32 UNC 7 lb-ft 0.250-28 UNF 12 lb-ft 0.312-24 UNF 15 lb-ft 0.375-24 UNF 26 lb-ft Vacuum Range To 1x10 -11 Torr Leak Test 2x10 -10 cc/sec of He Sold as is with 30day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items must be received in the same condition as sent. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is and without any warranty of merchantability or fitness for a particular use. Buyer may inspect the equipment prior to purchase and placement of the order prior to inspection is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of this product for its application. Anacapa Equipment Brokers, Inc. assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the unit will be installed and operated by qualified personnel. The purchaser agrees that the seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty.


ManufacturerMDC Vacuum Products
ModelPneumatic Inline Valve
Model #1V-200M-PAA-03
