Loctite 97150 Compact Rotor Pump Controller & 97611 Rotor Pump Dispenser (7498)

Loctite 97150 Compact Rotor Pump Controller & 97611 Rotor Pump Dispenser (7498)

$3,325 (USD)

Goleta, CA

orCall (805)-6364334

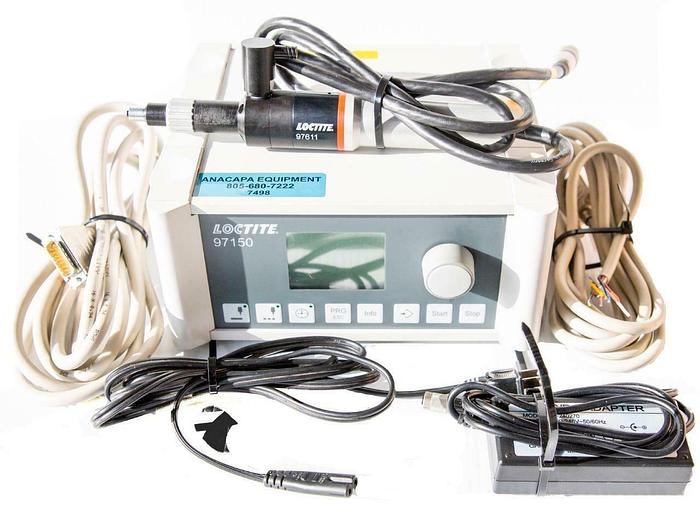

Loctite 97150 Compact Rotor Pump Controller with 97611 Rotor Pump Dispenser (7498)W Item is in good cosmetic condition with a few scuff marks. Item turns on and toggles through screen options. Item was taken from a working environment no further testing was done. See pictures for more details. Manufacturer: Loctite Model #/ Model: 97510 Compact Rotor Pump Controller and Loctite 97611 Rotor Pump Dispenser Description The volumetric rotor dispenser applies LOCTITE adhesives, like anaerobics, acrylates and UV acrylates out of a reservoir with high repeatability. The limit of viscosity is 100,000 mPas. The dispenser is a rotating displacement system. It consists of a rotor and a stator. The different geometries of the rotor and stator cause the formation of cavities. Rotation of the rotor in the stator generates a flow that is proportional to rotary angle, and so delivery is speed-dependent. The intrinsic self-sealing capability depends on the viscosity of the adhesive. Do not operate the dispenser in an explosive atmosphere. (Taken from Manufacture Website). Includes: Loctite 97150 Compact Rotor Pump Controller Loctite 97611 Rotor Pump Dispenser AC/DC Adapter Model:GM-240270 Input:AC 100-240V~50-60Hz Output: DC 24V-2.7A Power Supply 2 Cords compatible with XS 1: Start & XS 2: Reservoir plug ins on back of module. Specifications: Note* these specifications were taken from an online data source. System for dispensing quantity: 0,5 to 6,0 ml/min Order No. 1197319 Content: Compact Rotor Pump Controller, Type 97150 incl. external power supply Compact Rotor Dispenser 4.0, Type 97611 Loctite 97611 Rotor Pump Dispenser Accuracy: 1% Volume Flow: 0.05-6.0ml/min Input Pressure: 0-6 Bar Max.Dispensing pressure:1620bar Intrinsic Tightness: ~2bar Number of Revolutions: 0120rpm Storage Temperature:-10Cto+60C (+14 F to 140 F), dry/dust free Weight: ~ 1 Lb Dimensions: LxW": ~ 8.6x1.4" Loctite 97150 Compact Rotor Pump Controller Power supply (external adapter): 100-240 VAC ~1,6A max., 50/60 Hz, 100-200 VA Power supply (controller): 24VDC Power consumption: 2.7A Compressed air supply: min.1 bar (16 PSI), max. 7 bar (100 PSI) Pneumatic hose, control air connection O.D. : 6mm Pneumatic hose, product reservoir O.D. : 6mm Storage temperature: -10C to +60C (+14F to +140F), dry/dust-free Operating temperature: +10C to +40C (+50F to +104F) 240 mm x ~115 mm x 260 mm Amaximumviscosity of 10,000 mPas can be handled In line manufacturing or other automated workplace environments, the following messages can be analyzed by a higher ranking controller Weight: ~ 3 Lb Dimensions: LxWxH": ~ 10x9x4.5" Sold as is with 30 day Right of Return, only pictured items included Easy return/refund for any reason Anacapa Equipment RETURNS Anacapa Equipment Brokers, Inc. (Seller) strives to offer excellent customer service. You may return any equipment purchased from us for any reason within thirty (30) days after your receipt of the equipment for a full refund of the purchase price, provided that returned items are received in the same condition as sent. We DO NOT ship internationally. If you are using a freight forwarder then returns are VOID. SHIPPING All equipment purchased is shipped within one (1) business day (subject to freight availability) after receipt of payment and is shipped FOB place of shipment. We only charge actual shipping cost. If eBay overcharges for shipping, we issue an immediate refund for the difference. If you are undercharged, we will absorb the cost. We DO NOT ship internationally. IF you are using a freight forwarder then returns are VOID. LIMITED WARRANTY Buyer acknowledges that the equipment is being sold as is" and without any warranty of merchantability or fitness for a particular use. The entire risk as to the quality and performance of the equipment is with the Buyer. Should the equipment prove defective following its purchase the Buyer and not the Seller, manufacturer, distributor, or retailer assumes the entire cost of all necessary servicing or repair. Buyer may inspect the equipment prior to purchase and placement of the order. Failure to inspect prior to placement of an order is deemed a waiver of Buyers right to inspect. Buyer is responsible for determining the suitability of the equipment for its application. Seller assumes no liability for the use or misuse of any equipment purchased by Buyer. It is assumed that the equipment will be installed and operated by qualified personnel. The Buyer agrees that the Seller shall not be held responsible or liable for any injuries or damages, whether incidental or consequential, associated in any way with the equipment purchased. The Buyer, by purchasing this equipment, indicates its acknowledgment of, and agreement, to the terms of this limited warranty . INDEMNITY Buyer shall be solely liable for, and shall defend, indemnify, and hold Seller, its Affiliates, and all of their respective directors, officers, employees, agents, and independent contractors (Indemnitees) harmless from and against any and all damages, liabilities, injuries, losses, costs (including reasonable attorneys and experts fees at trial and on appeal), and expenses which may be incurred by, asserted against, or recoverable from any Indemnitee as a result of any actual or threatened action, suit or proceeding arising out of or relating in any way to the purchase of equipment from Seller. The validity and interpretation of this Agreement and the enforcement thereof shall be governed by the laws of the State of California without regard to any principles governing conflicts of laws. Any dispute arising from the purchase of equipment from Seller must be resolved in the State Courts of California.


Model #/ Model97510 Compact Rotor Pump Controller and
AC/DC Adapter ModelGM-240270
InputAC 100-240V~50-60Hz
OutputDC 24V-2.7A
Volume Flow0.05-6.0ml/min
Input Pressure0-6 Bar
Max.Dispensing pressure1620bar
Intrinsic Tightness~2bar
Number of Revolutions0120rpm
Storage Temperature-10Cto+60C
Weight~ 3 Lb
Power supply (controller)24VDC
Power consumption2.7A
Pneumatic hose, control air connection O.D.6mm
Pneumatic hose, product reservoir O.D.6mm
